EXG90BL 90cm gesture control extractor

EXG90BL
EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL EXG90BL

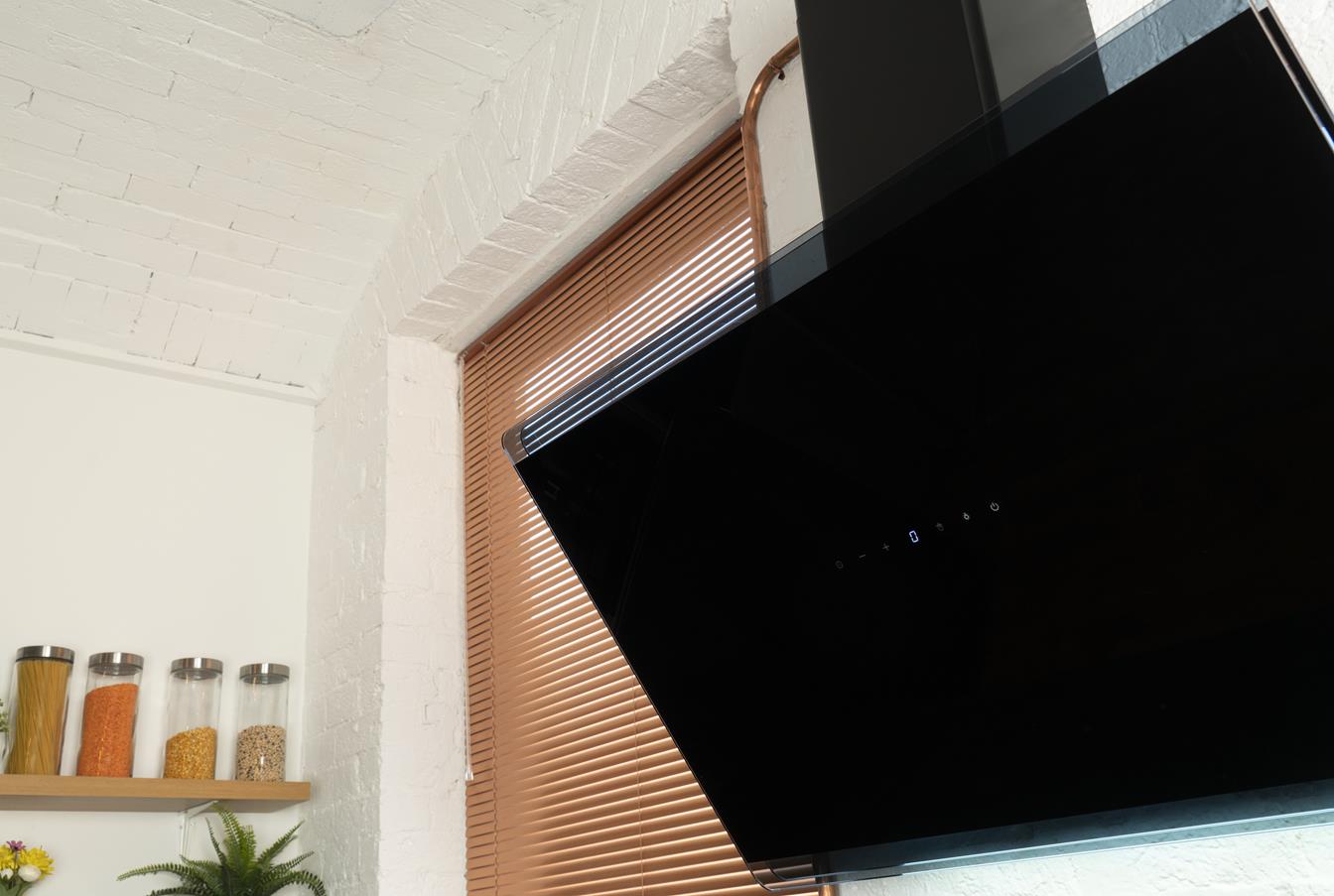

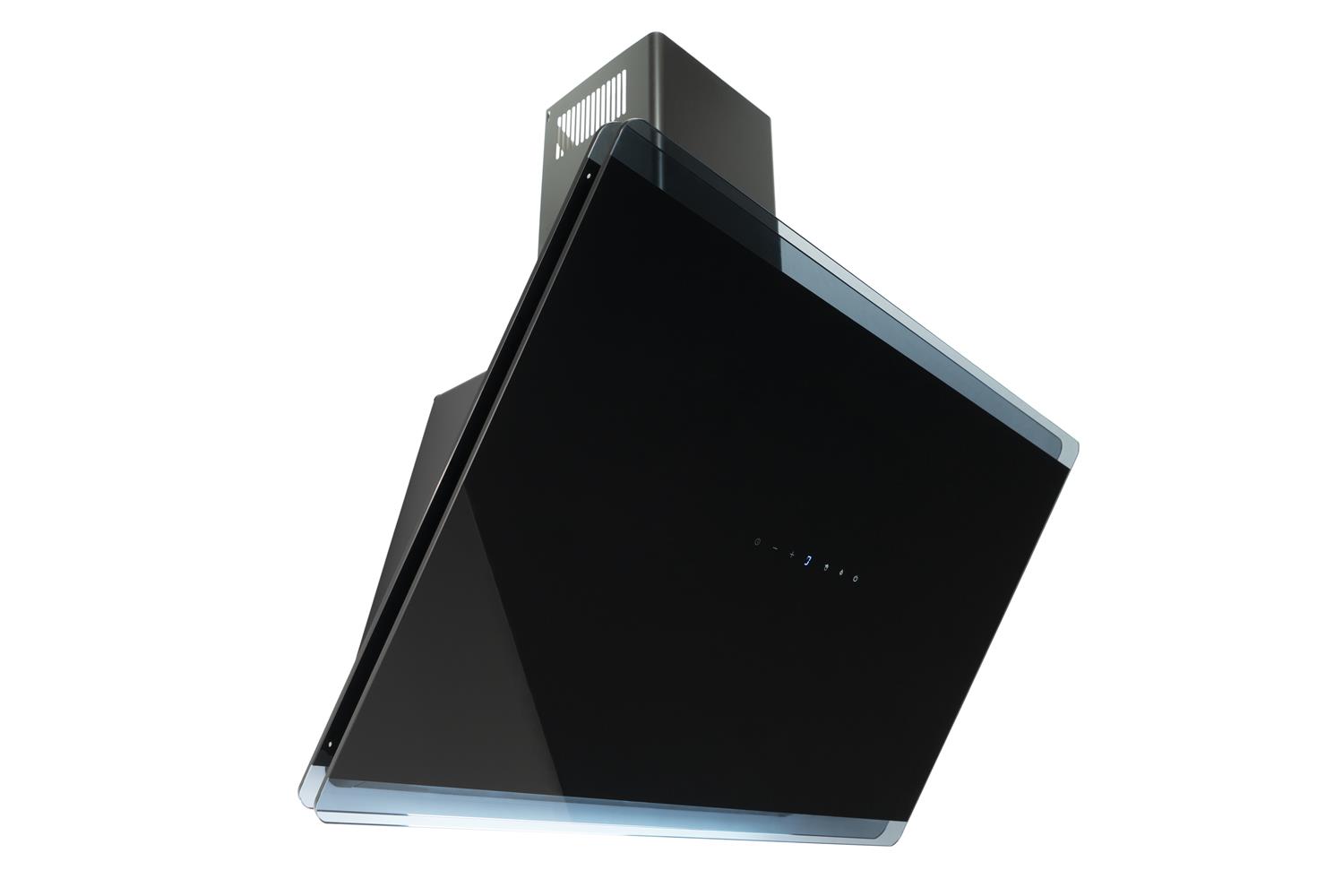

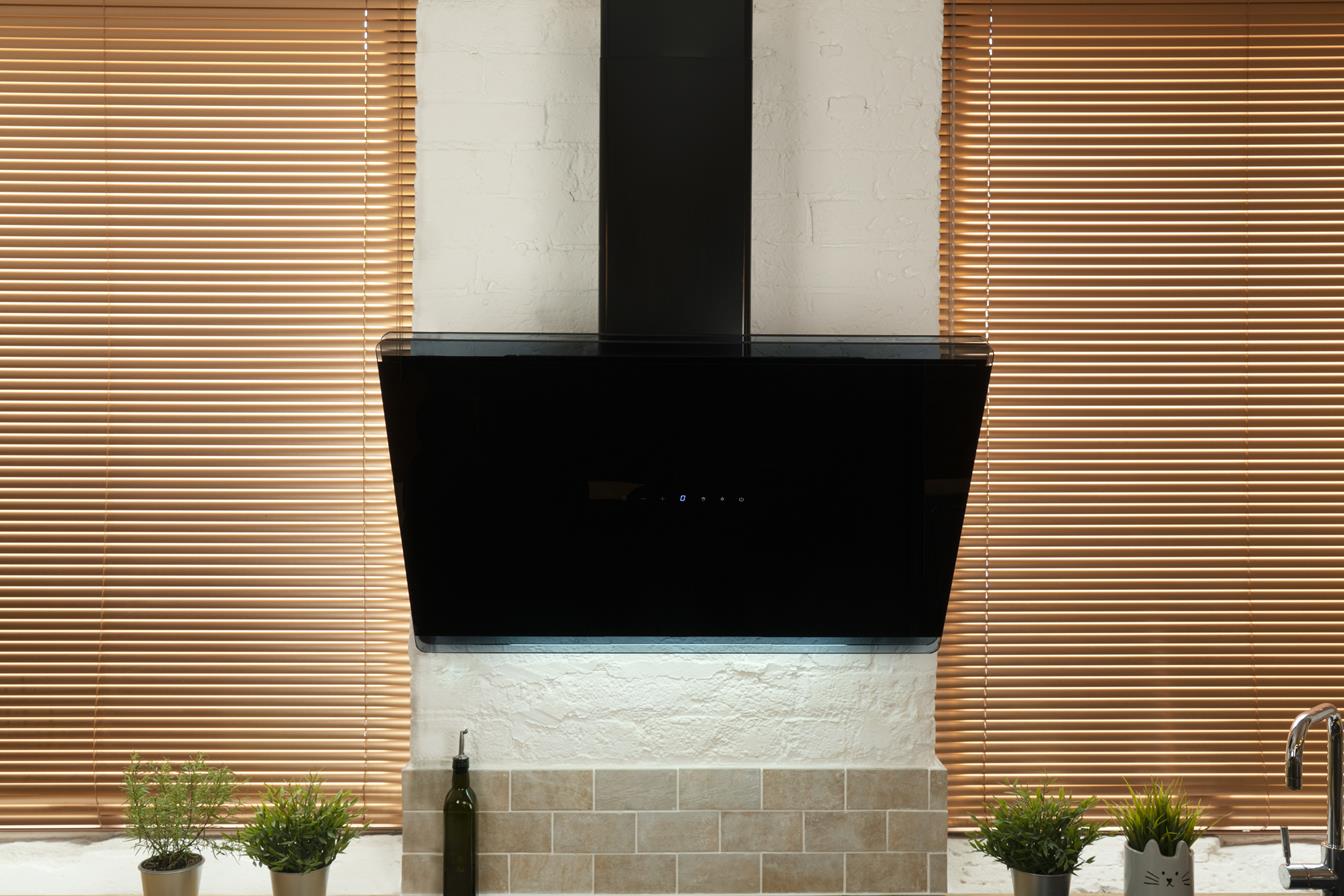

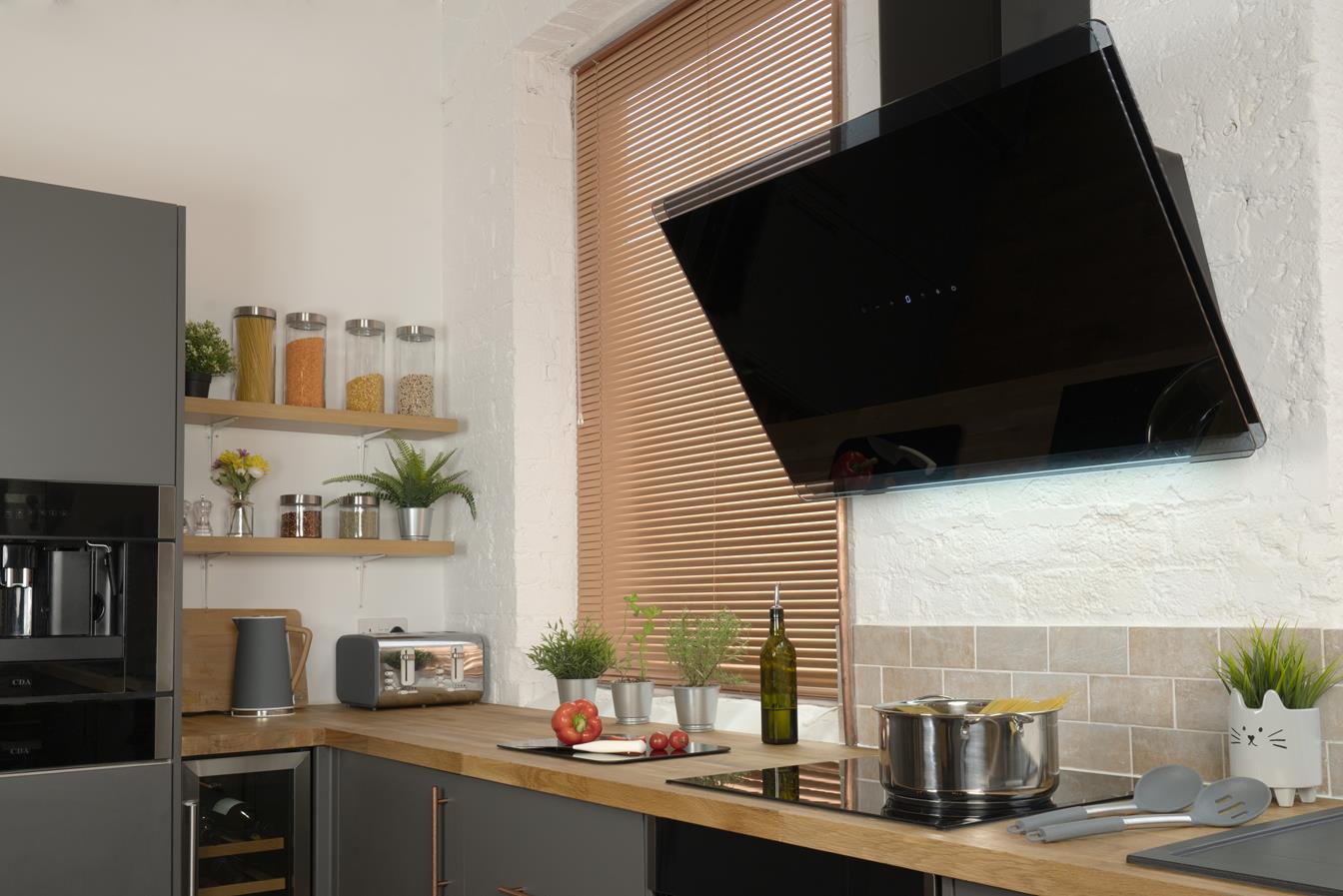

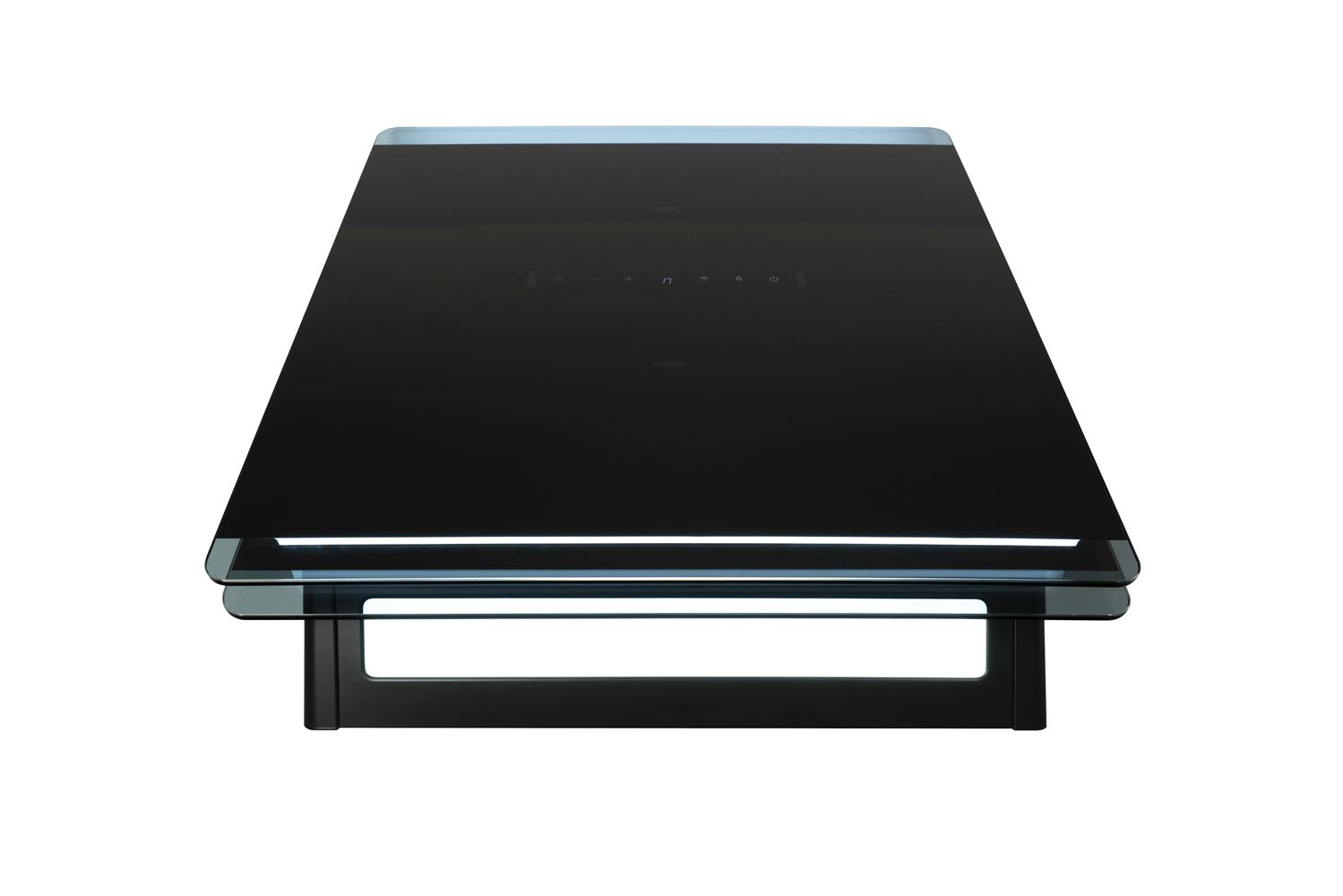

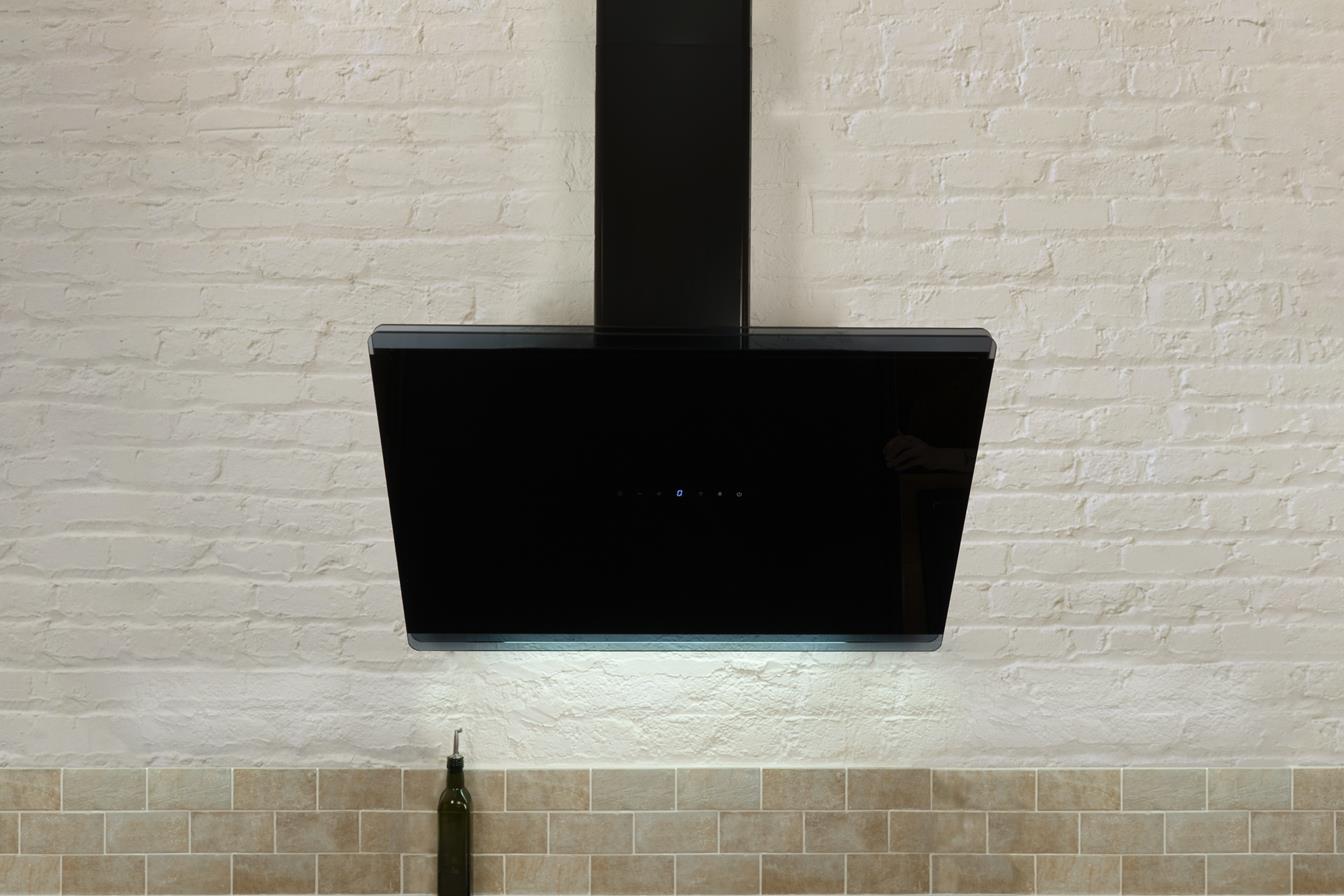

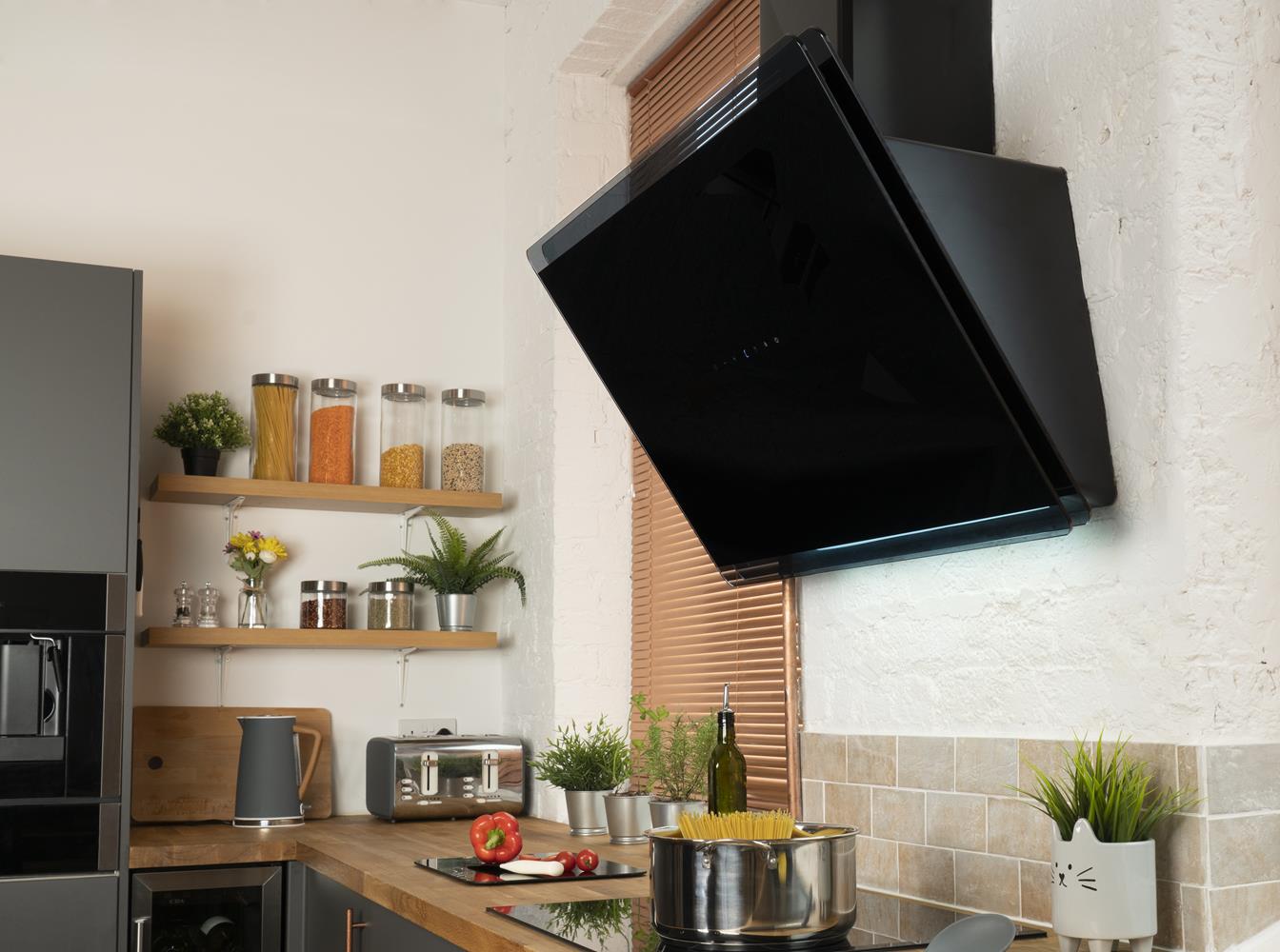

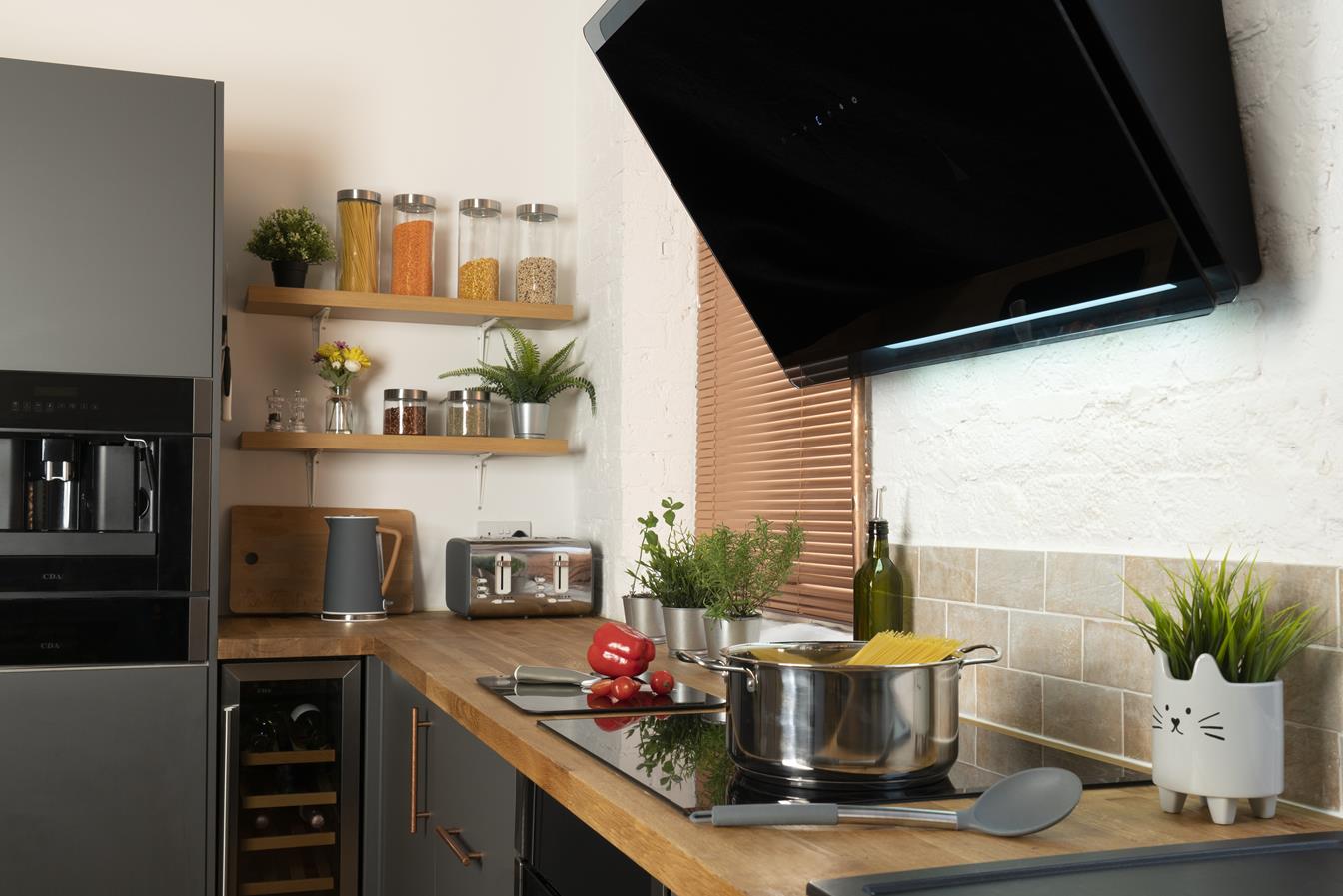

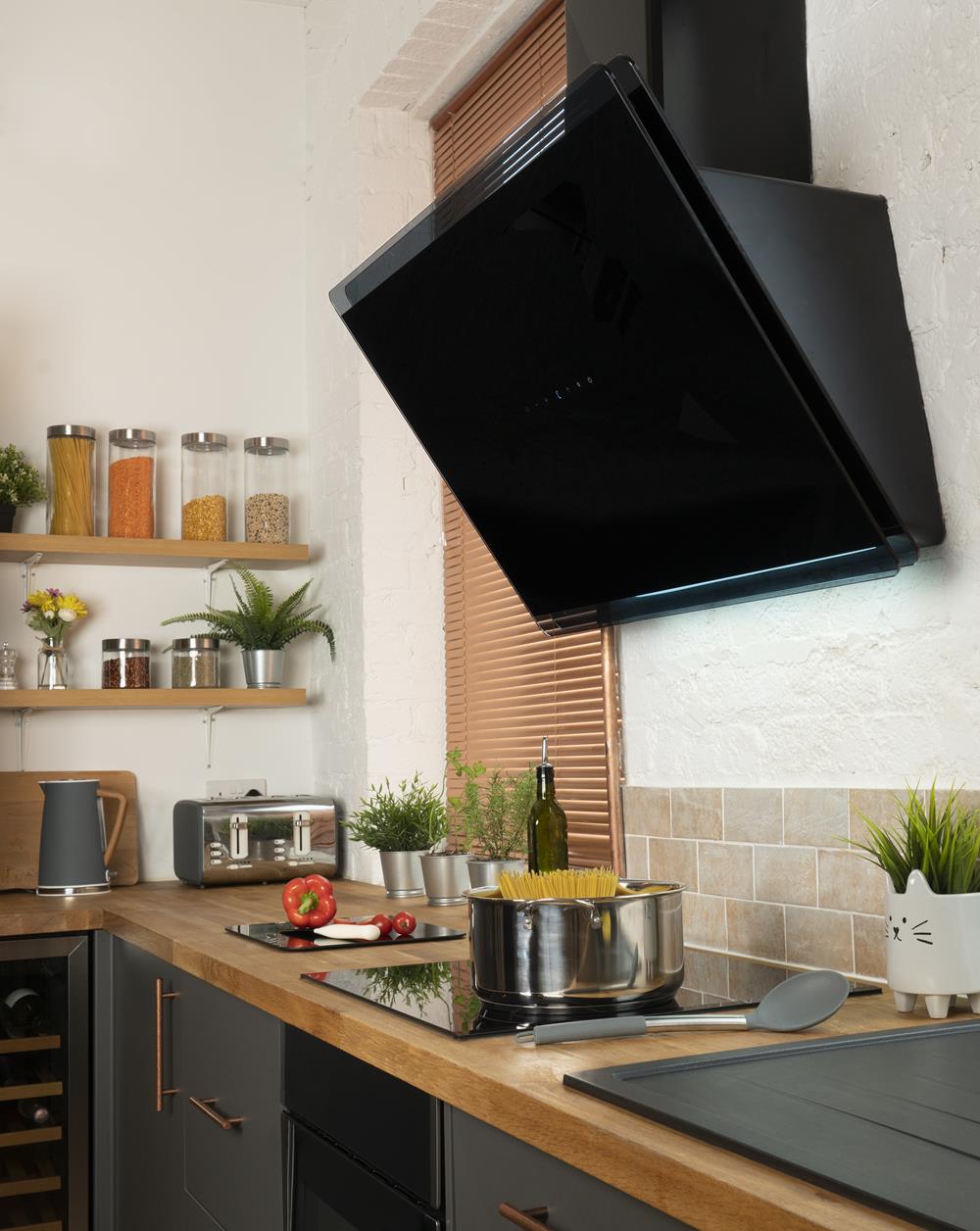

The EXG90BL is a hands-free, gesture controlled chimney extractor that allows you to adjust the speed settings and turn the lights on or off with the wave of a hand, or by using the touch control panel if you prefer. It comes with a timer to completely clear your kitchen of cooking smells even after you have finished cooking and is available in either 60cm or 90cm wide to suit your kitchen.


Features
Technical
Downloads

Features

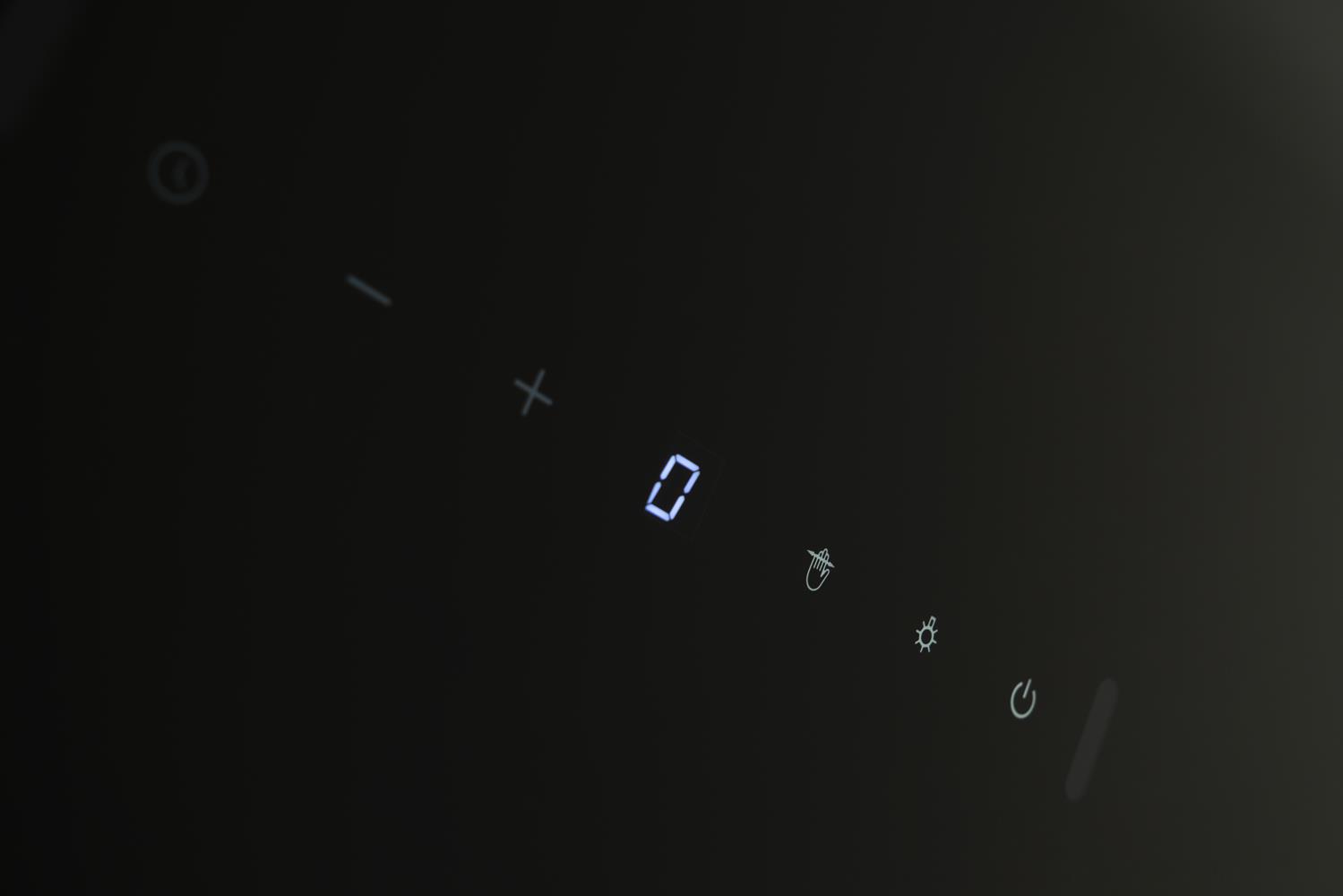

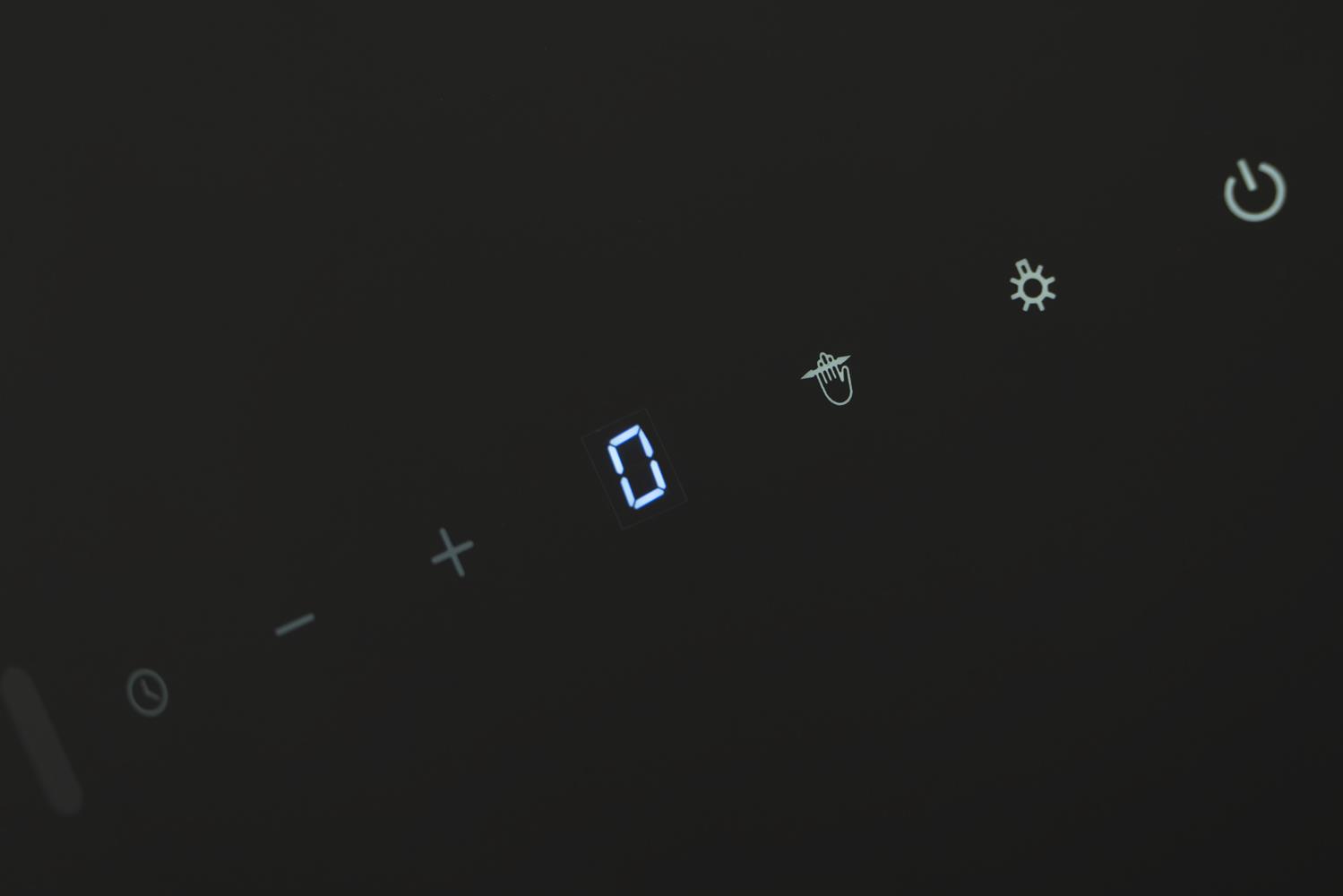

  • Glass control panel
  • Gesture control
  • Touch control
  • Number of Speeds: 4
  • Boost function
  • Timer: 5, 10, 15 minutes
  • Ducted/re-circulating installation
  • Height adjustable

Available in

  • Black

Dimensions

  • Height: 940-1420mm
  • Width: 900mm
  • Depth: 475mm

Optional Accessories

  • Ducting kit code: AED610, AED660

Technical Specification

  • Outlet diameter: 150 mm
  • Rated electrical power: 312 W
  • Motor input: 300W W
  • Mains lead length: 1.2m m
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Protection class: Class I
  • Pressure value: 461 Pa

Extraction Rates And Noise

  • Extraction rate speed 1: 378 m3/hr
  • Extraction rate speed 2: 450 m3/hr
  • Extraction rate speed 3: 611 m3/hr
  • Extraction rate speed 4: 711 m3/hr
  • Noise level speed 1: 59 dBA
  • Noise level speed 2: 66 dBA
  • Noise level speed 3: 68 dBA
  • Noise level speed 4: 69 dBA

Energy

  • Annual energy consumption: 55 kWh
  • Energy rating: A

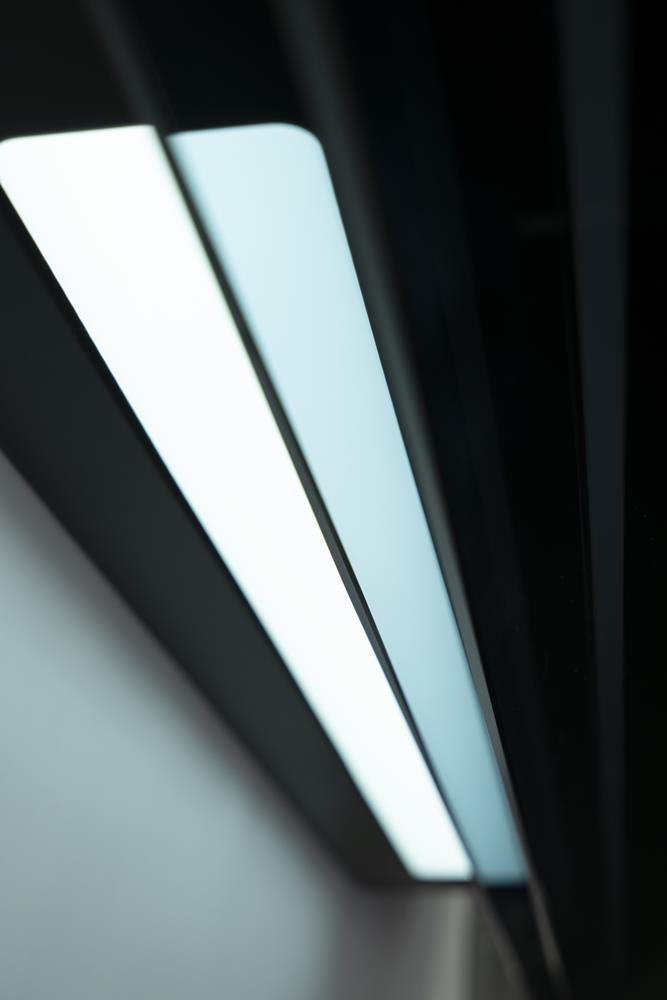

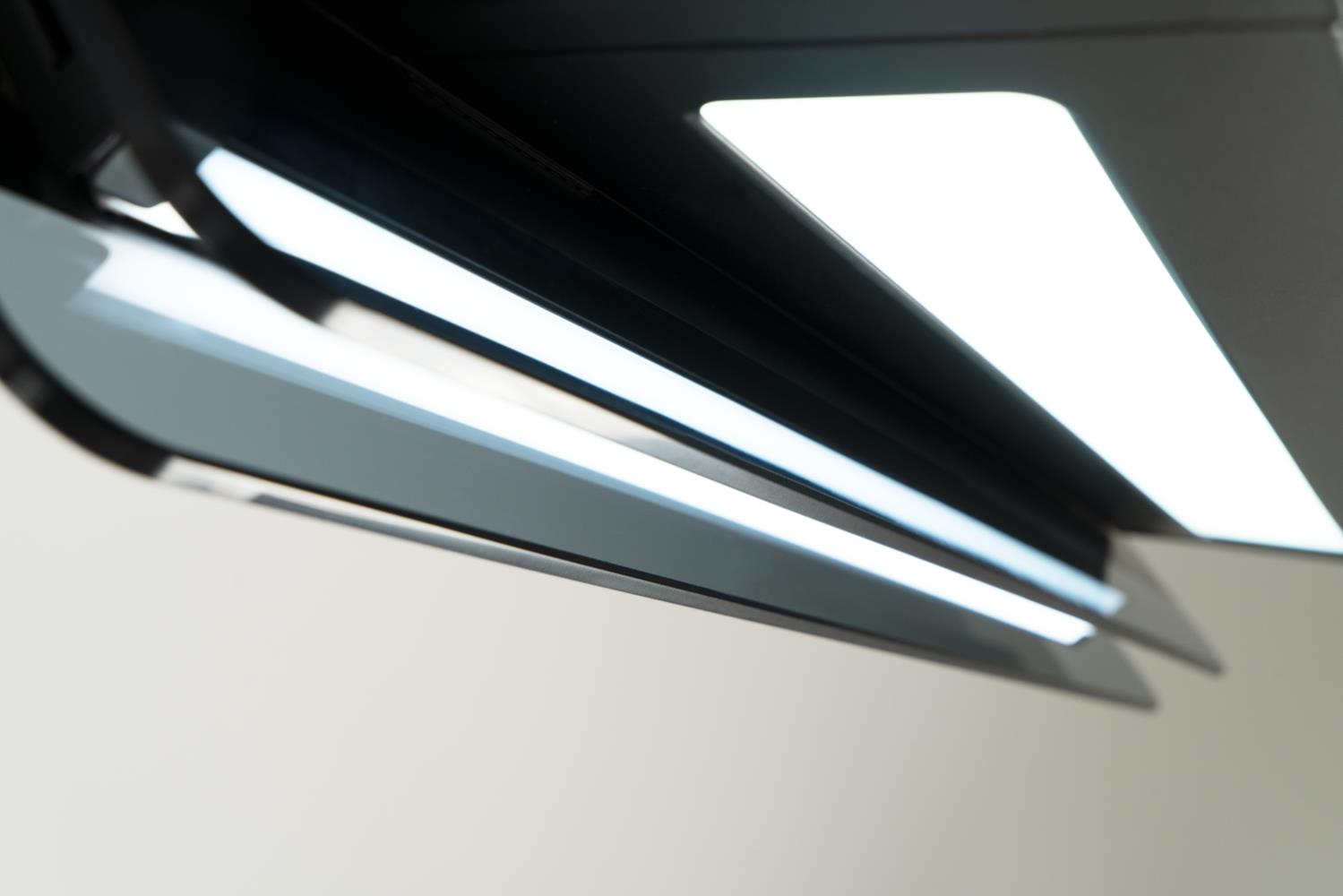

Lighting

  • Type of light: LED panel
  • Wattage of lights: 6W
  • Number of lights: 1
  • Colour temperature: 6500K
  • Lighting energy rating: B
  • Additional lighting: 2x 3W decorative

Filters

  • Grease filtering efficiency class: E
  • Type of grease filter: Aluminium frame
  • Number of layers: 5
  • Number of grease filters: 2
  • Dishwashable grease filter
  • Number of charcoal filters (optional): 2
  • Charcoal filter code: CHA37, pack of 2

Misc Information

  • WEEE Category: 1
