3D9BL Downdraft extractor

This product has now been discontinued
3D9BL
3D9BL 3D9BL 3D9BL

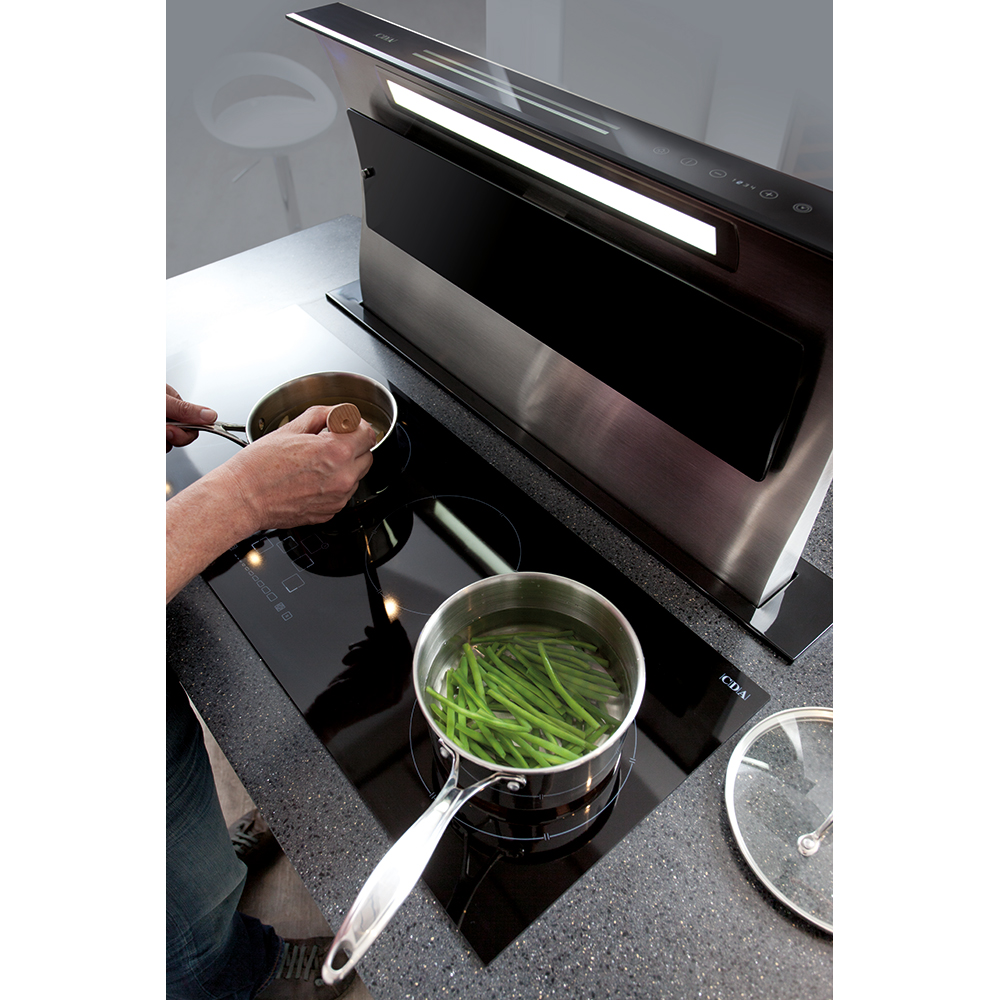

The CDA 3D9BL is a sleek and super effective downdraft extractor that's the perfect choice for a minimalist super modern kitchen as it slips sliently away below the worktop when not in use. The 3D9BL has 4 speeds with a touch control glass panel. It also has a 10 minute timer meaning there is no need to turn off the extractor after cooking.


Features
Technical
Downloads

Video


Features

  • Speeds: 4
  • Glass control panel
  • Touch control
  • Timer: 10 minute timer
  • Synchronised sliding system
  • Ducted/ re-circulating installation
  • Motor included
  • Glass side panel
  • Additional information: This extractor is certified for use with gas hobs with a rating of 11.3kW or less

Available in

  • Black

Optional Accessories

  • Charcoal Filters: CHA14 (pack of 2)
  • Ducting kit code: AED 61/63/64
  • Ducting Kit: AED61/63/64

Technical Specification

  • Power supply: 3 A
  • Pressure value: 540 Pa
  • Recommended height over electric hobs: 0 mm
  • Recommended height over gas hobs: 0 mm

Extraction Rates And Noise

  • Extraction rate speed 1: 268 m3/hr
  • Extraction rate speed 2: 425 m3/hr
  • Extraction rate speed 3: 605 m3/hr
  • Extraction rate speed 4: 757 m3/hr
  • Noise level speed 1: 38 dBA
  • Noise level speed 2: 47 dBA
  • Noise level speed 3: 61 dBA
  • Noise level speed 4: 68 dBA
  • Noise level: 68 dBA

Energy

  • Energy rating: A

Lighting

  • Lighting: 24W

Filters

  • Number of charcoal filters (optional): 2
  • Number of grease filters: 1
  • Type of grease filter: Aluminium grease filters

Misc Information

  • WEEE Category: 01
