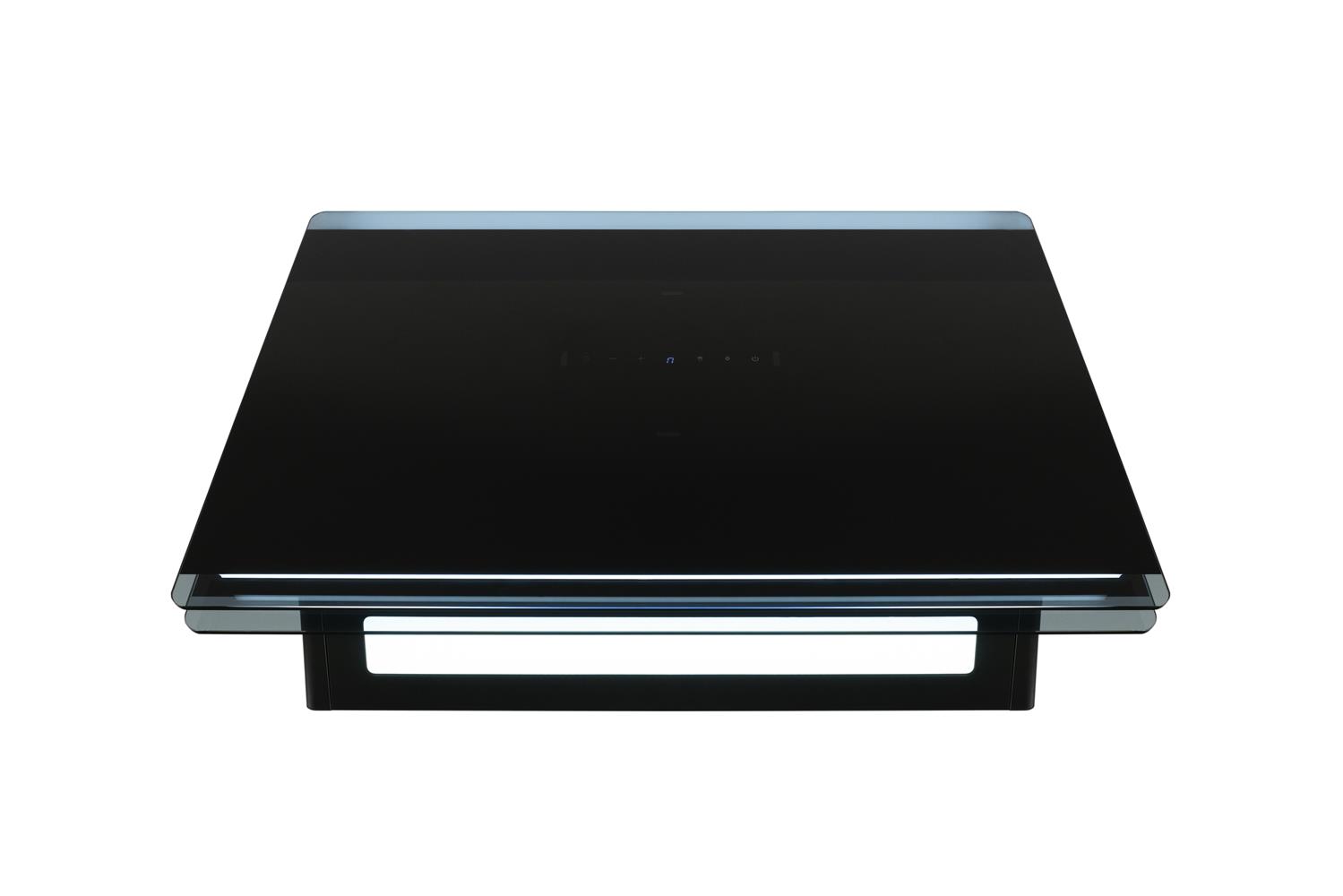

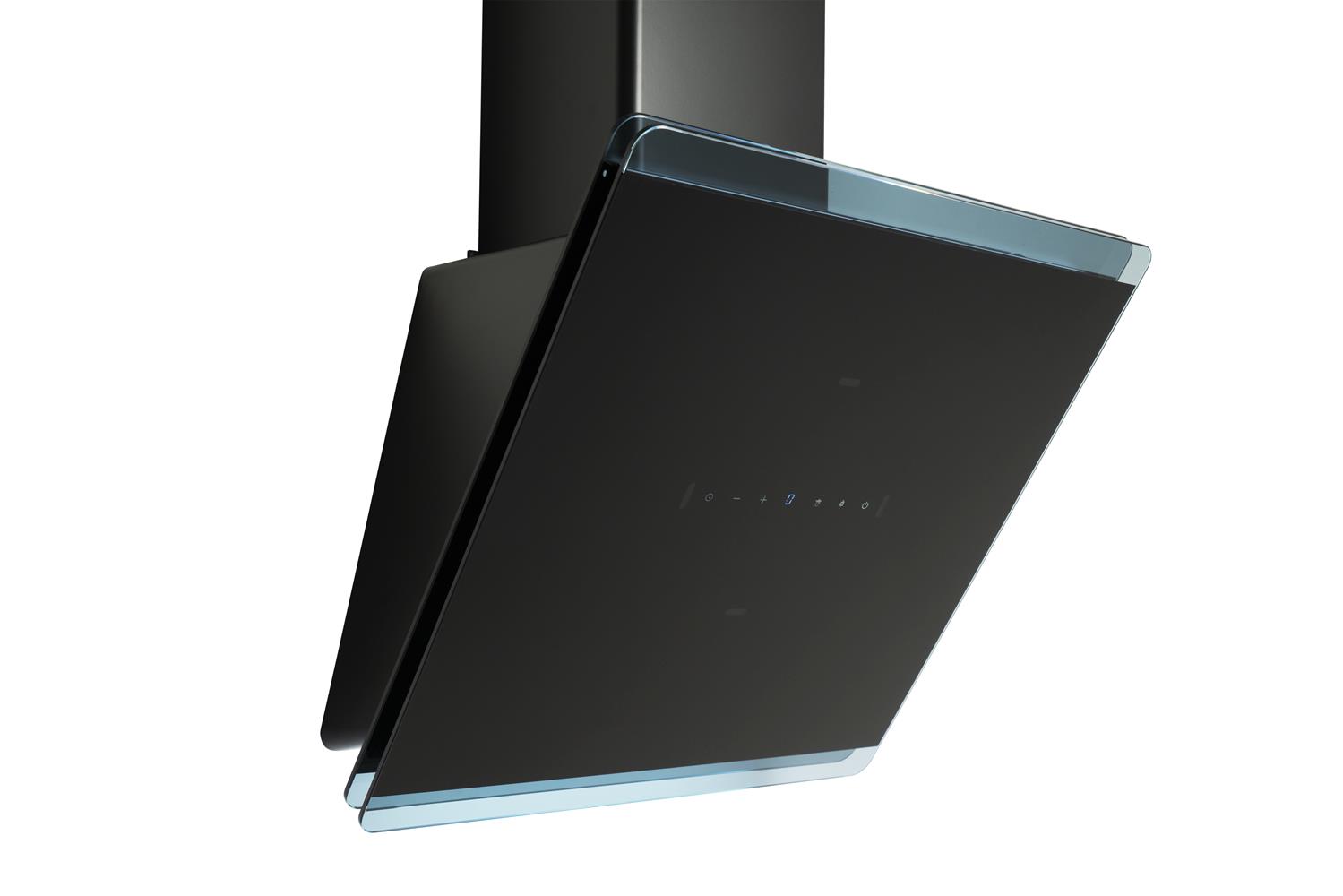

EXG60BL 60cm gesture control extractor

EXG60BL
EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL EXG60BL

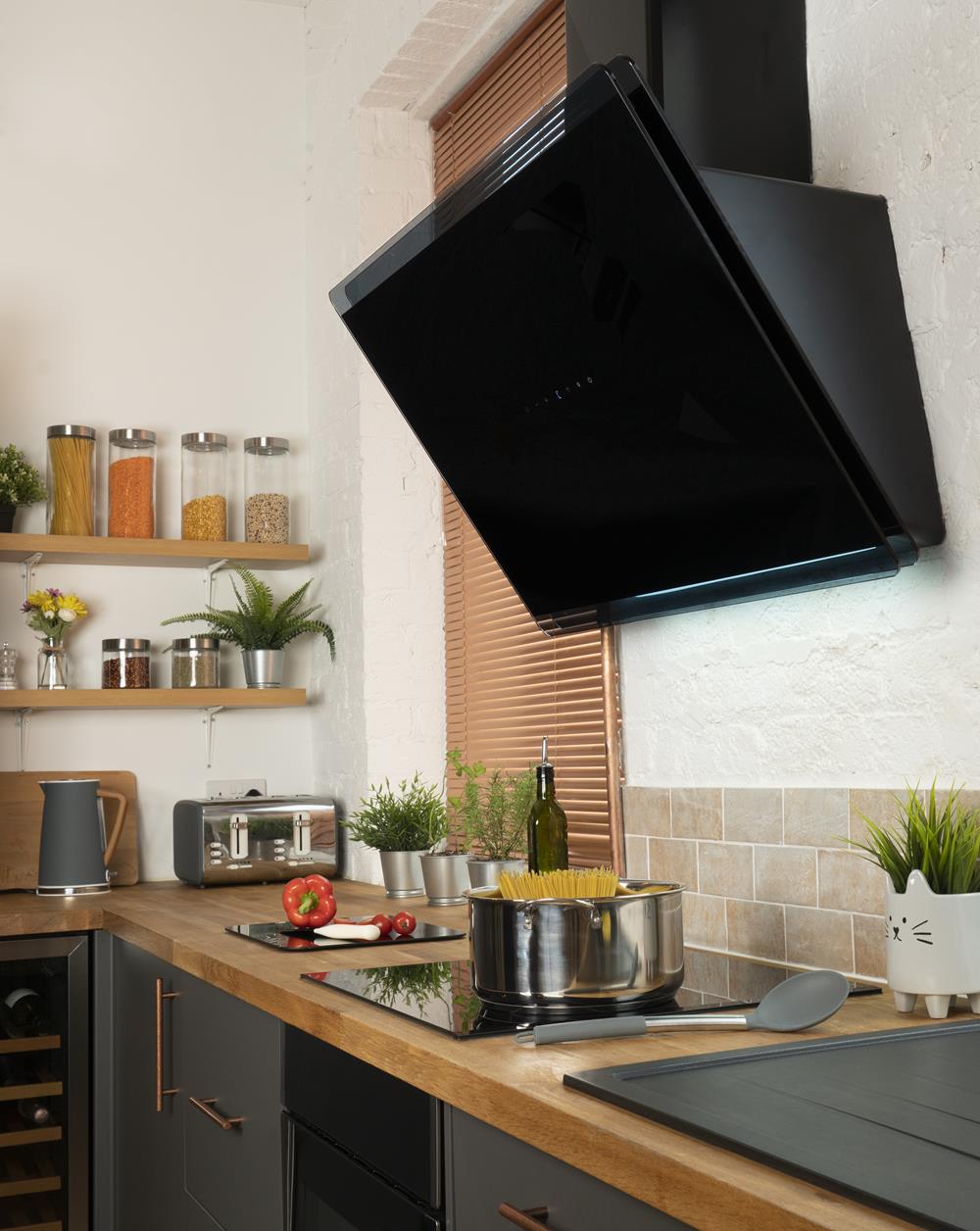

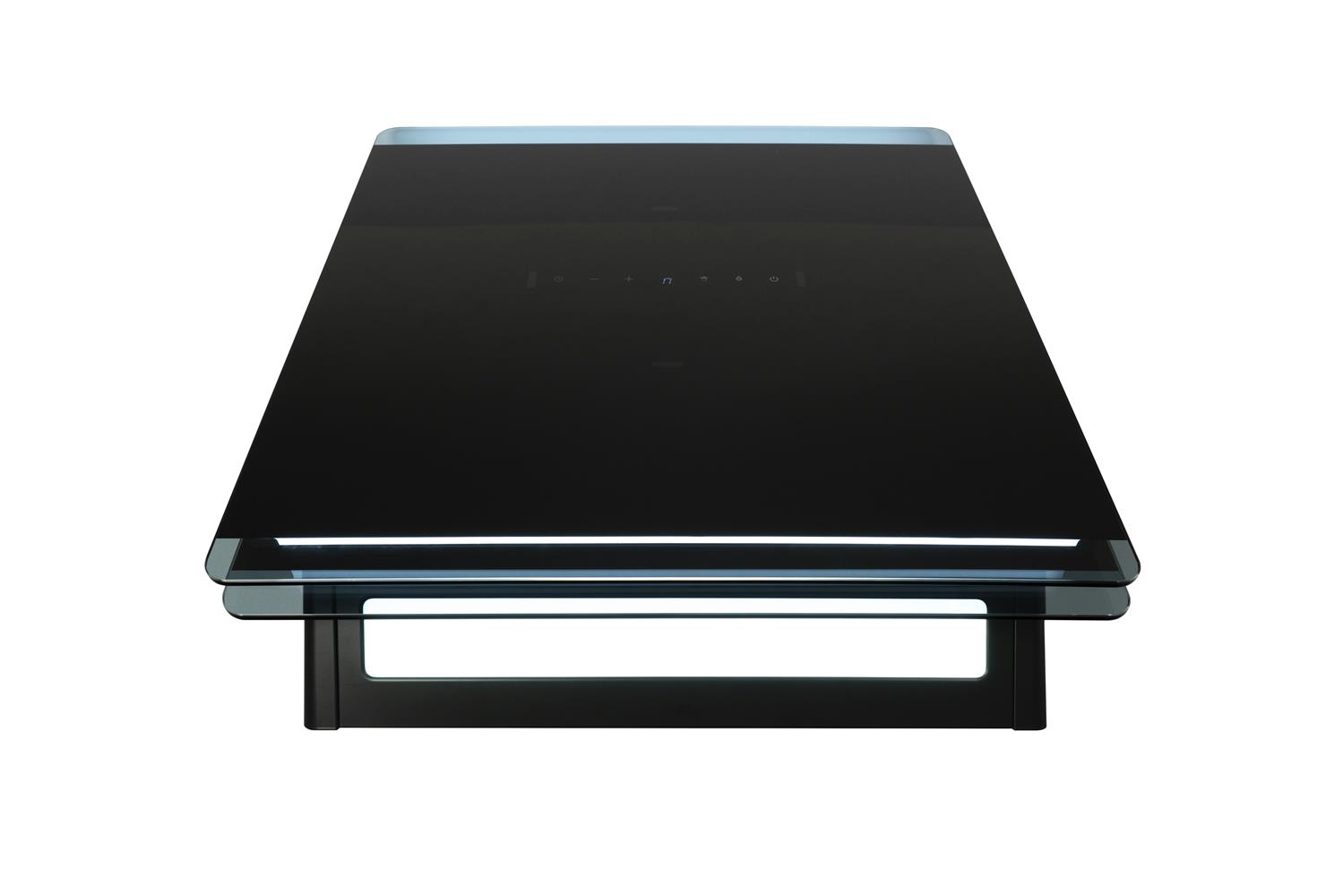

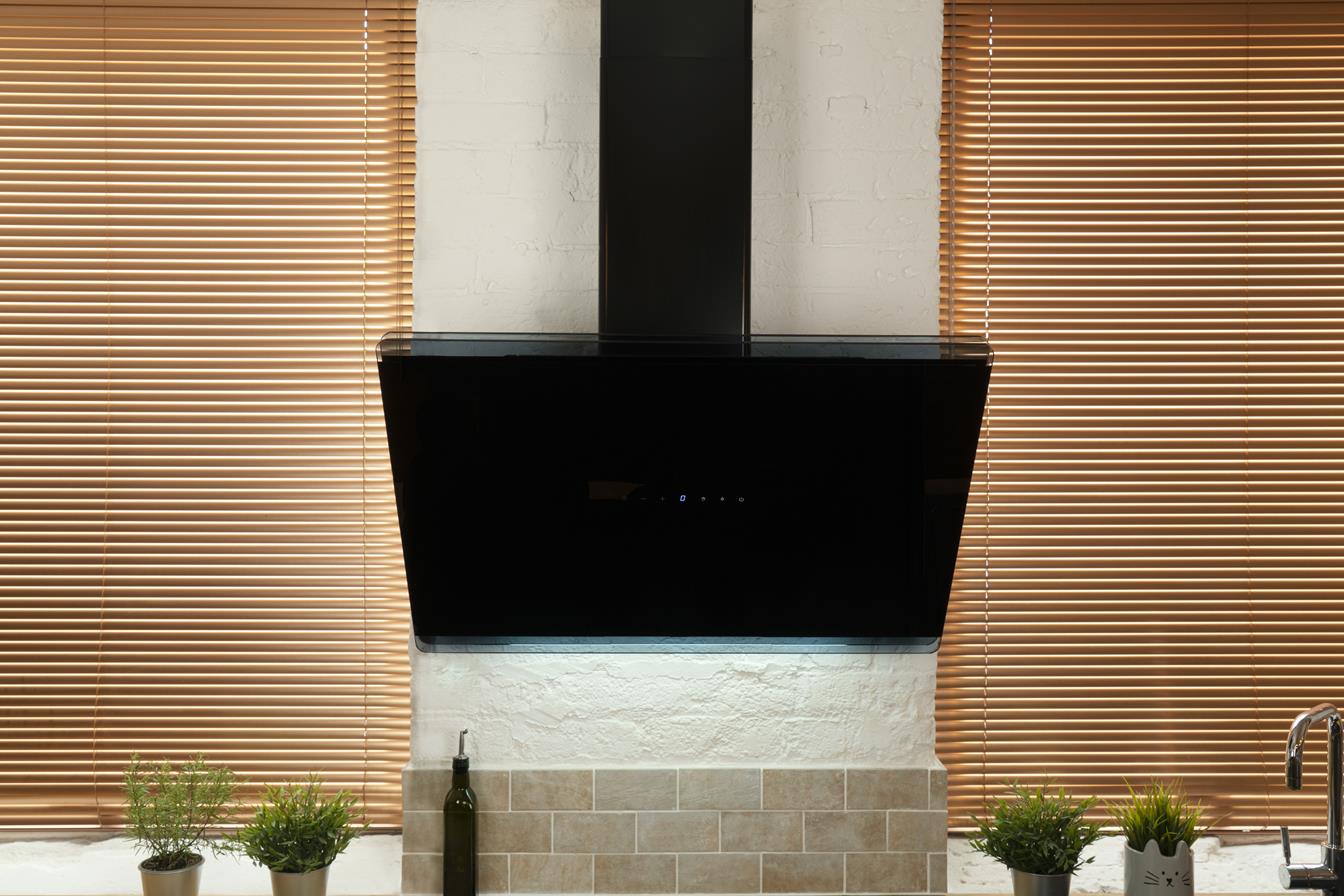

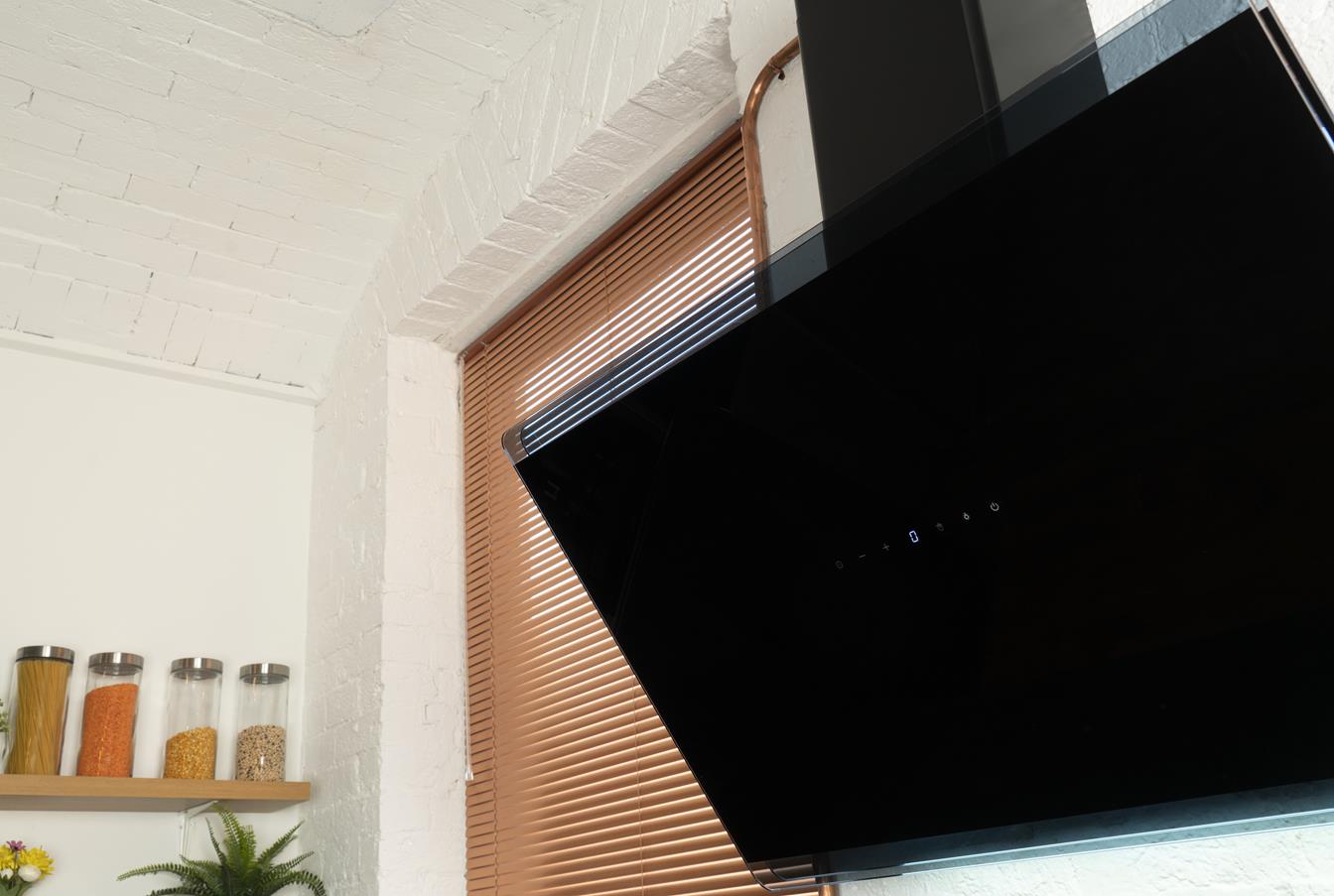

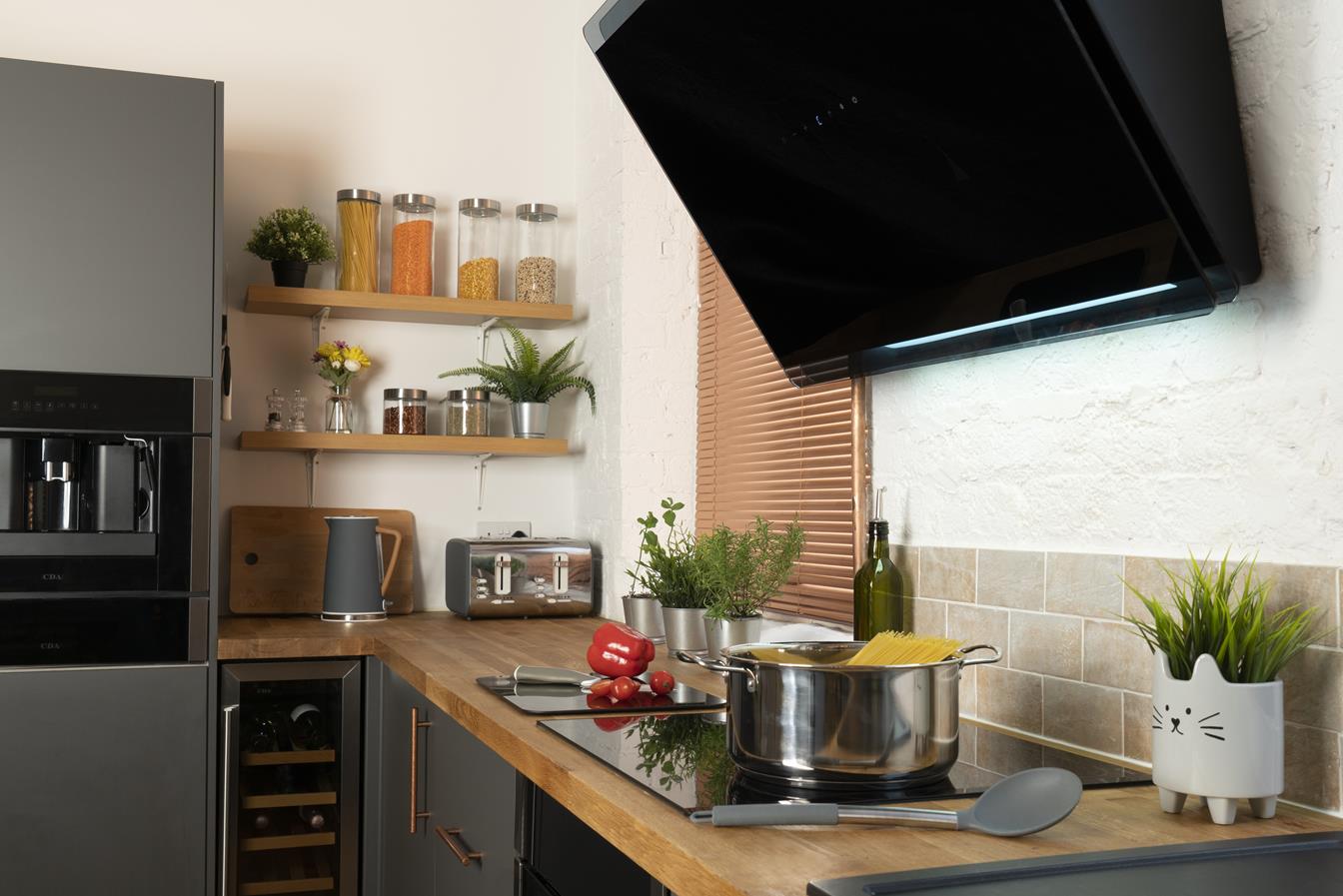

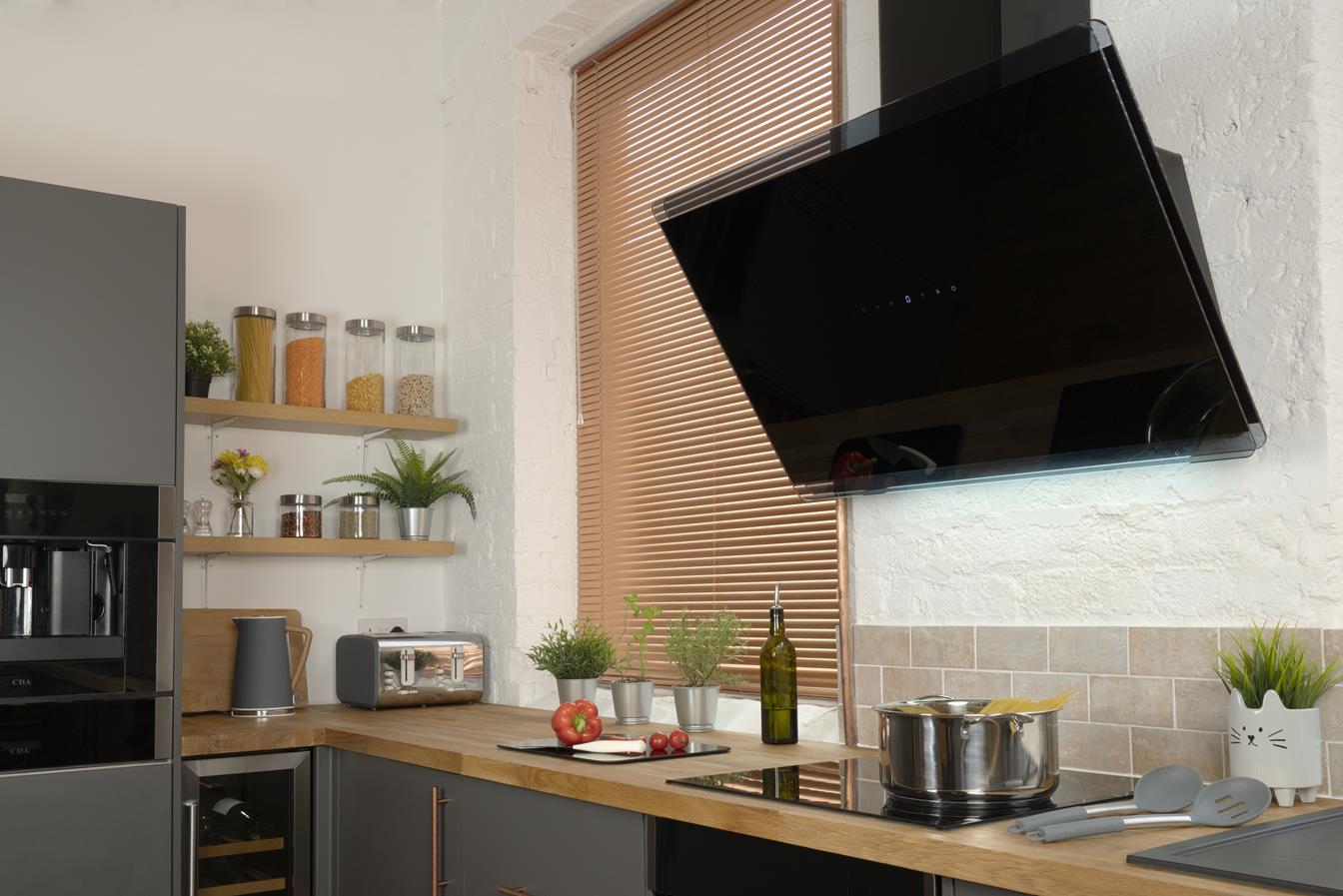

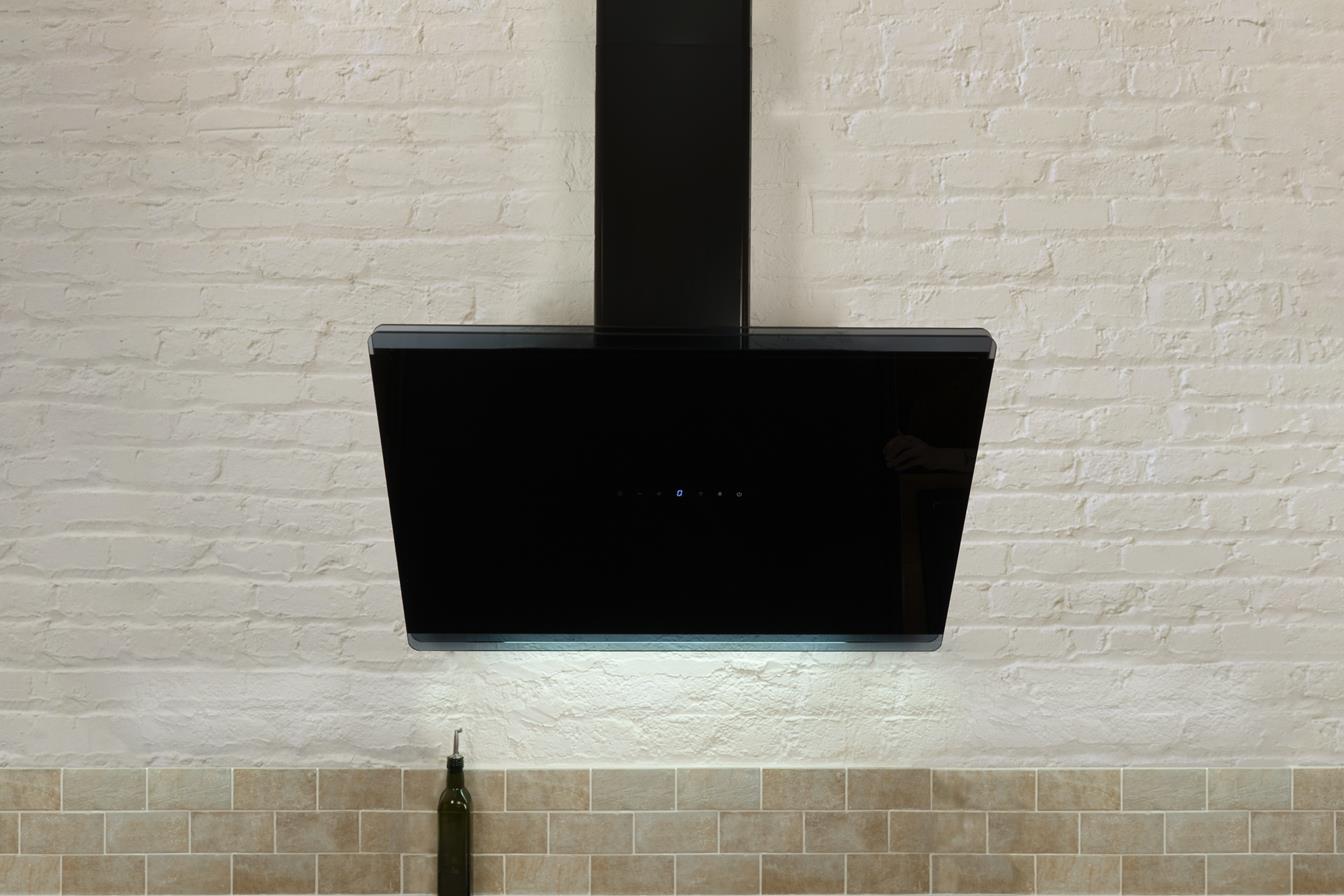

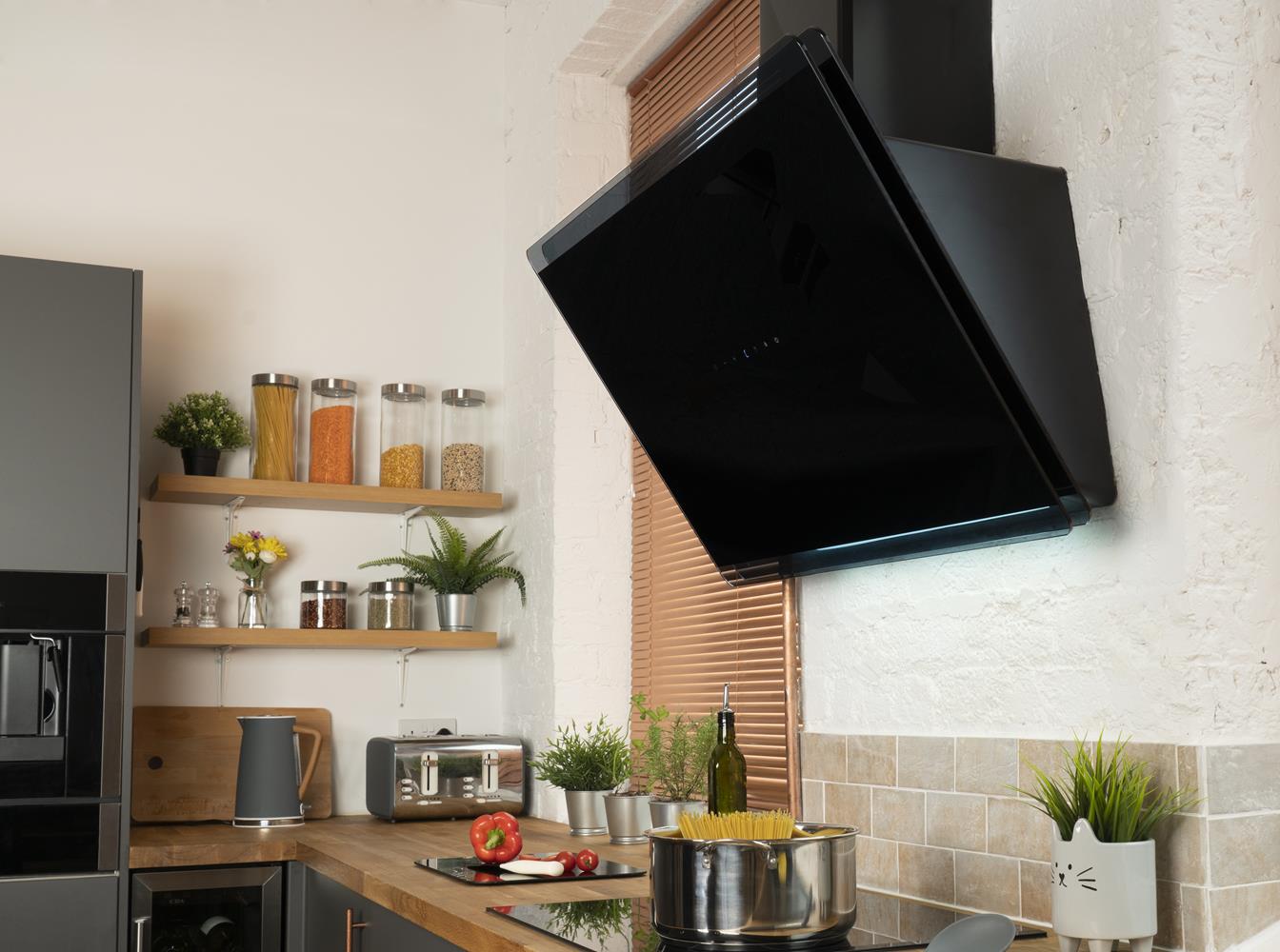

The EXG60BL is a hands-free, gesture controlled chimney extractor that allows you to adjust the speed settings and turn the lights on or off with the wave of a hand, or by using the touch control panel if you prefer. It comes with a timer to completely clear your kitchen of cooking smells even after you have finished cooking and is available in either 60cm or 90cm to suit your kitchen.


Features
Technical
Downloads

Features

  • Number of speeds: 4

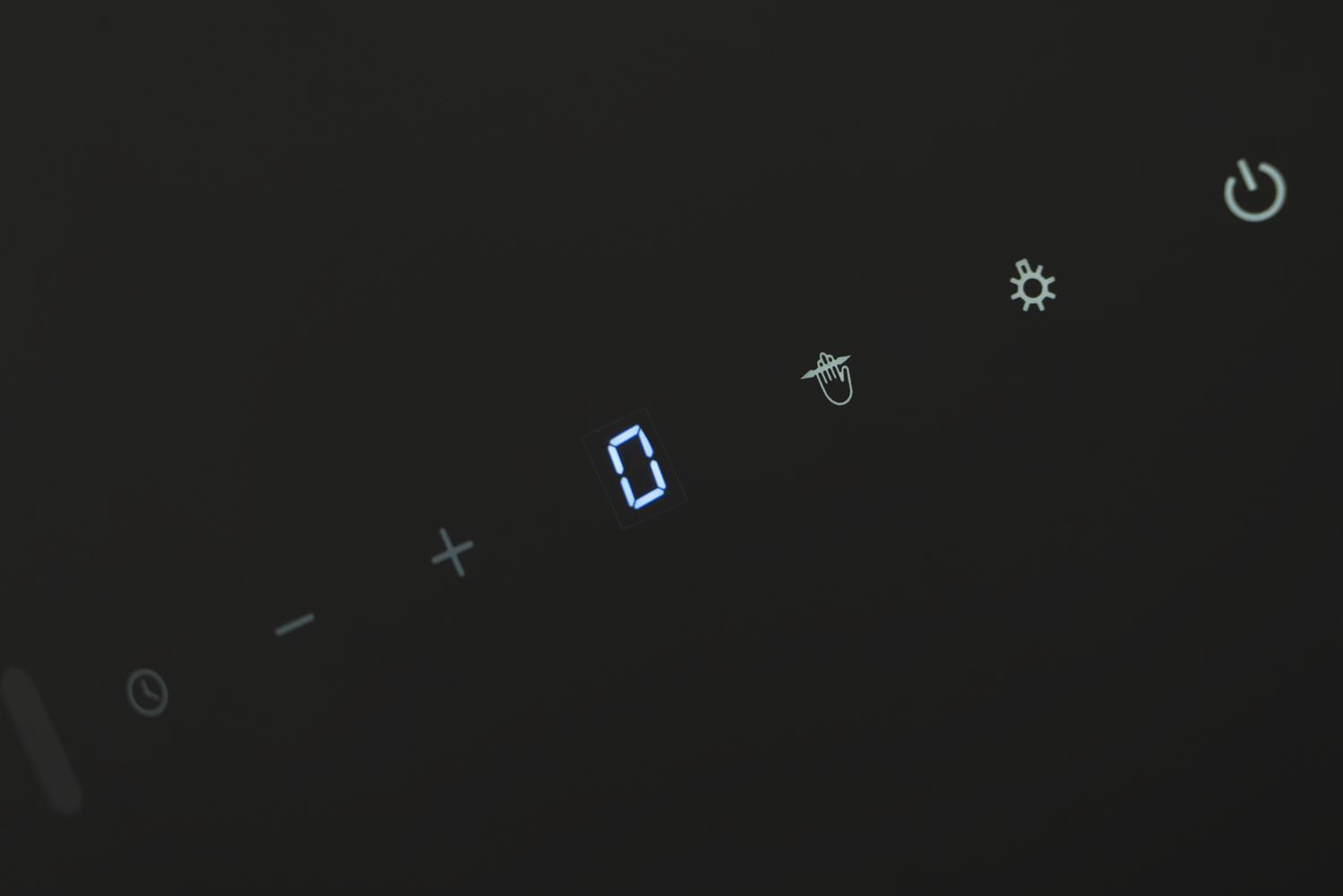

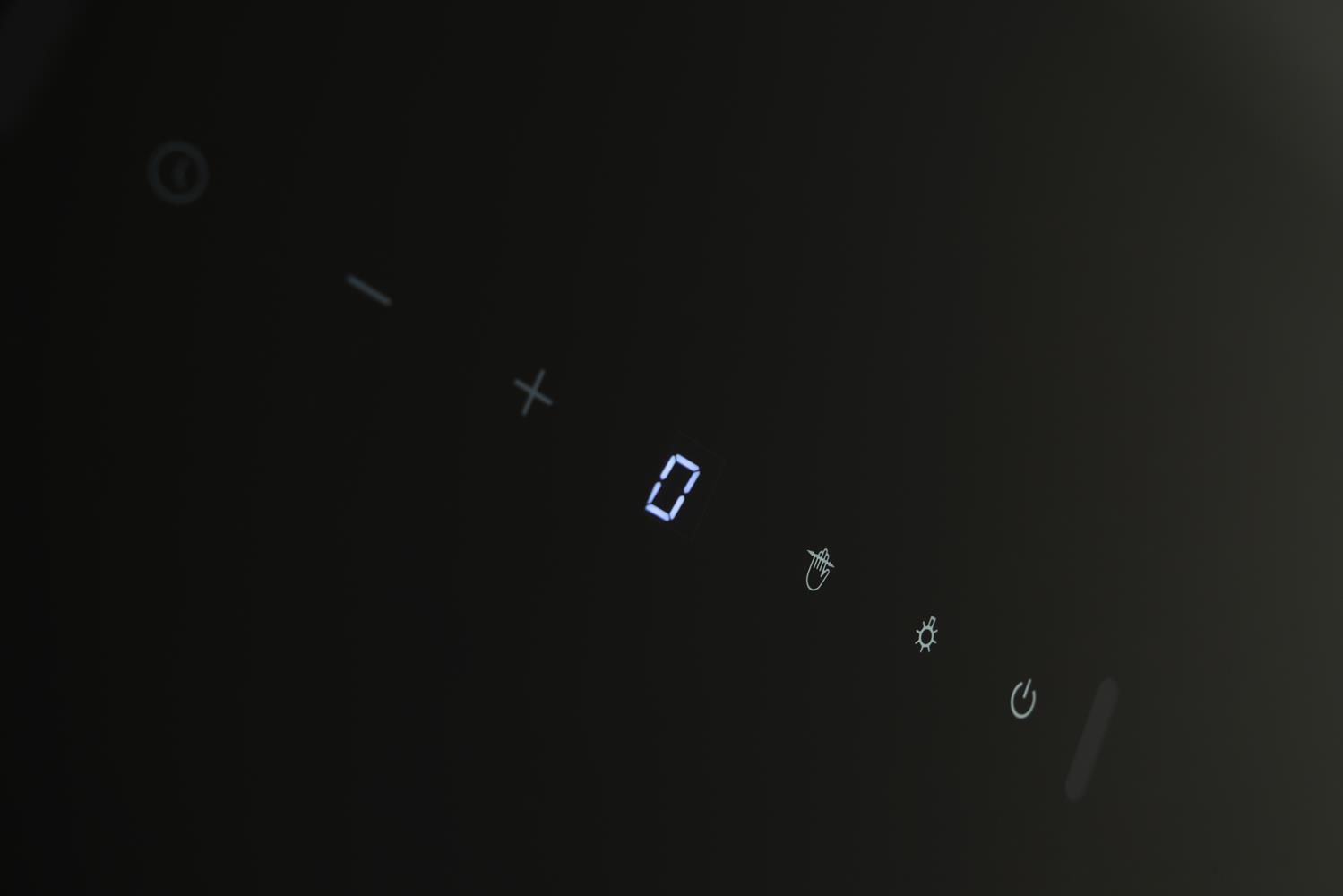

  • Glass control panel
  • Gesture control
  • Touch control
  • Boost function
  • Timer: 5, 10, 15 minutes
  • Height adjustable
  • Ducted/re-circulating installation

Available in

  • Black

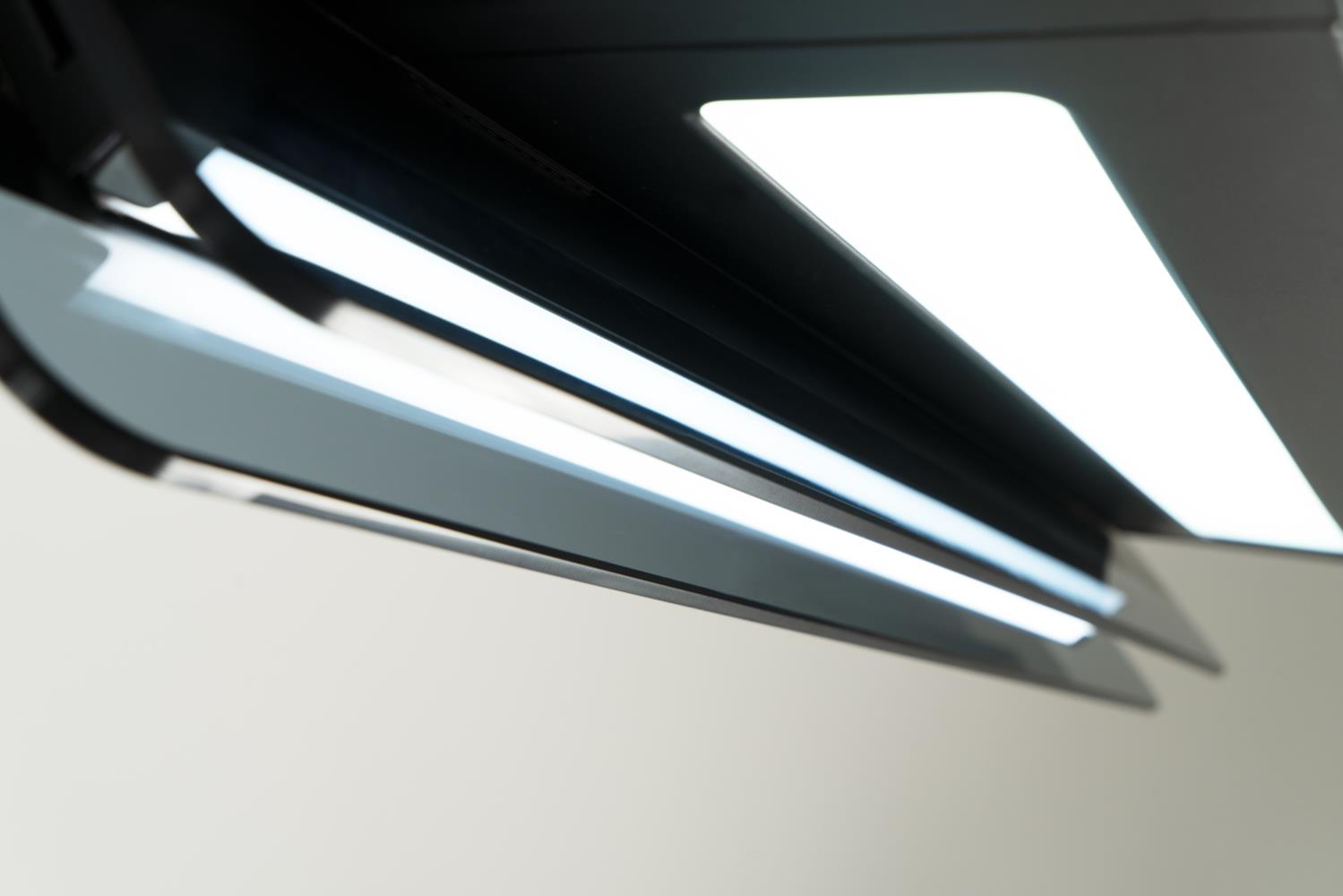

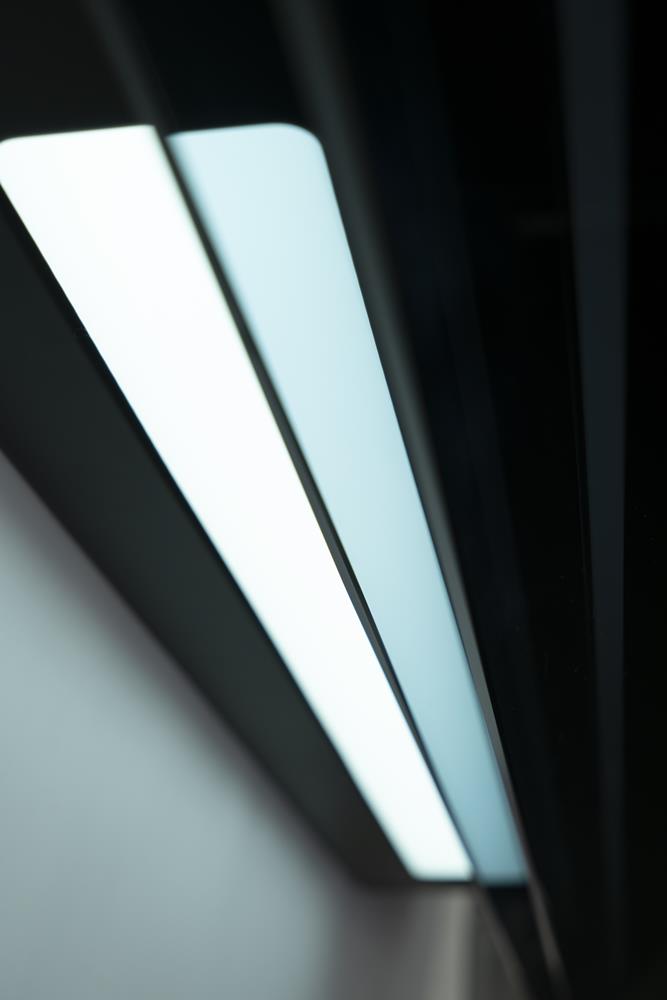

Lighting

  • Type of light: LED
  • Wattage of lights: 4W
  • Number of lights: 1
  • Colour temperature: 6500K
  • Additional lighting: 2x 2W decorative

Dimensions

  • Height: 940-1420mm
  • Width: 600mm
  • Depth: 475mm

Optional Accessories

  • Charcoal filter code: CHA37, pack of 2
  • Ducting kit code: AED610, AED660

Technical Specification

  • Outlet Diameter: 150 mm
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Protection class: Class I
  • Pressure value: 409 Pa
  • Rated electrical power: 308 W
  • Motor input: 300W W
  • Fuse: 3 A
  • Mains lead length: 1.2m m

Extraction Rates And Noise

  • Extraction rate speed 1: 382 m3/hr
  • Extraction rate speed 2: 476 m3/hr
  • Extraction rate speed 3: 619 m3/hr
  • Extraction rate speed 4: 700 m3/hr
  • Noise level speed 1: 59 dBA
  • Noise level speed 2: 66 dBA
  • Noise level speed 3: 68 dBA
  • Noise level speed 4: 69 dBA

Energy

  • Energy rating: A
  • Annual energy consumption: 49 kWh

Filters

  • Grease filtering efficiency class: E
  • Type of grease filter: Aluminium frame
  • Number of layers: 5
  • Number of grease filters: 1
  • Dishwashable grease filter
  • Number of charcoal filters (optional): 2

Misc Information

  • WEEE Category: 1
