HNE81FR 80cm Four zone Indu-air

HNE81FR
HNE81FR HNE81FR HNE81FR

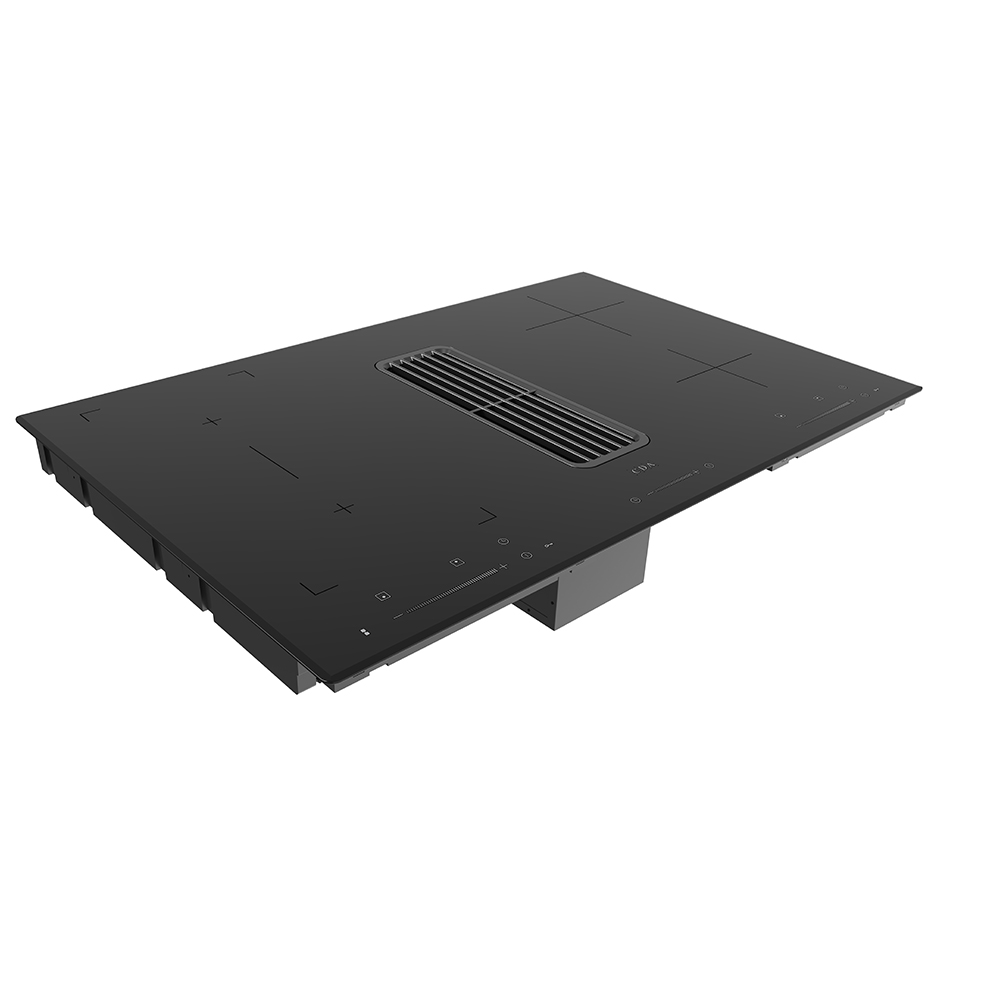

The HNE81FR Indu-Air combines two appliances into one! The Indu-Air features a 4 zone induction hob with bridging technology and a built in, flush fit extractor that will sweep cooking smells, steam and smoke down through the hob and filter it beneath the worktop. Designed to be streamlined, minimalist and modern, this effective solution to the practical requirements surrounding everyday cooking brings technology and style together. This extractor and induction hob duo offer freedom with planning options in the kitchen whilst also featuring front slider controls, child lock, 9 hob power levels, Automatic pan detection and Timer. The slimline rigid ducting also allows for a drawer pack to be fitted underneath, maximising space!


Features
Technical
Downloads

Video


Features

  • Zones: 4
  • 9 power levels
  • Left zones bridging function
  • Automatic pan detection
  • Timer: 0-99min
  • Overflow detection
  • Overheat detection
  • Auto safety switch off
  • Child lock
  • LED display
  • Electronic touch and slide control
  • Front control
  • Residual heat indicators

Dimensions

  • Height: 62mm
  • Width: 800mm
  • Depth: 520mm
  • In-furniture depth: 56 mm
  • Cut out size WxD: 780x500mm
  • Packaged dimensions (gross) HxWxD: 525x905x605mm
  • Net weight: 23kg
  • Gross weight: 33kg

Filters

  • Number of charcoal filters (optional): 1
  • Charcoal filter code: CHA44, pack of 1
  • Type of grease filter: Aluminium
  • Number of grease filters: 1
  • Number of layers: 3
  • Grease filtering class: G

Extraction Rates And Noise

  • Extraction rate speed 1: 296.3m³/h m³/hr
  • Extraction rate speed 2: 420m³/h m³/hr
  • Extraction rate speed 3: 534m³/h m³/hr
  • Noise level speed 1: 55dBA dBA
  • Noise level speed 2: 63dBA dBA
  • Noise level speed 3: 69dBA dBA

Technical Specification

  • Rated electrical power: 6.9400 kW
  • Power cable length: 1m

Zone Information

  • Left front: 180mm: 1.5kW
  • Left rear: 180mm: 2kW
  • Right front: 140mm: 1.5kW
  • Right rear: 180mm: 2kW

Misc Information

  • WEEE Category: 1
