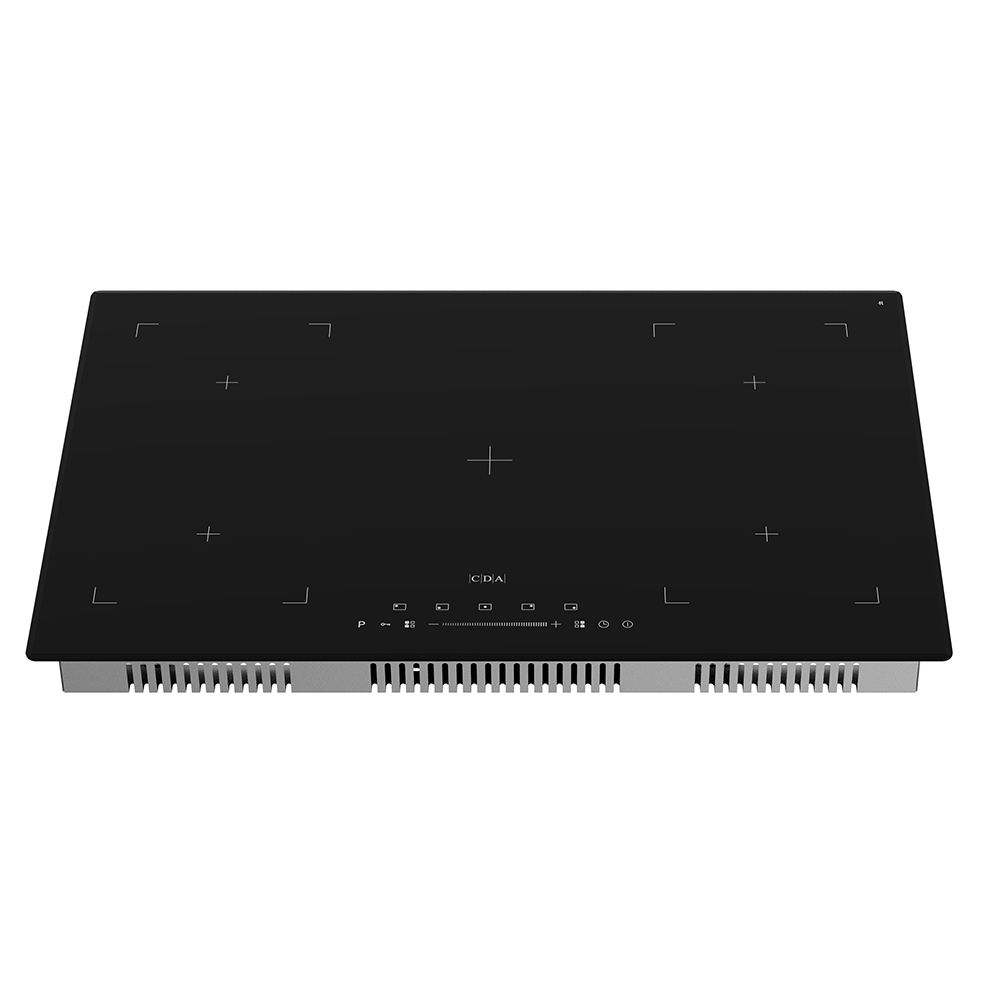

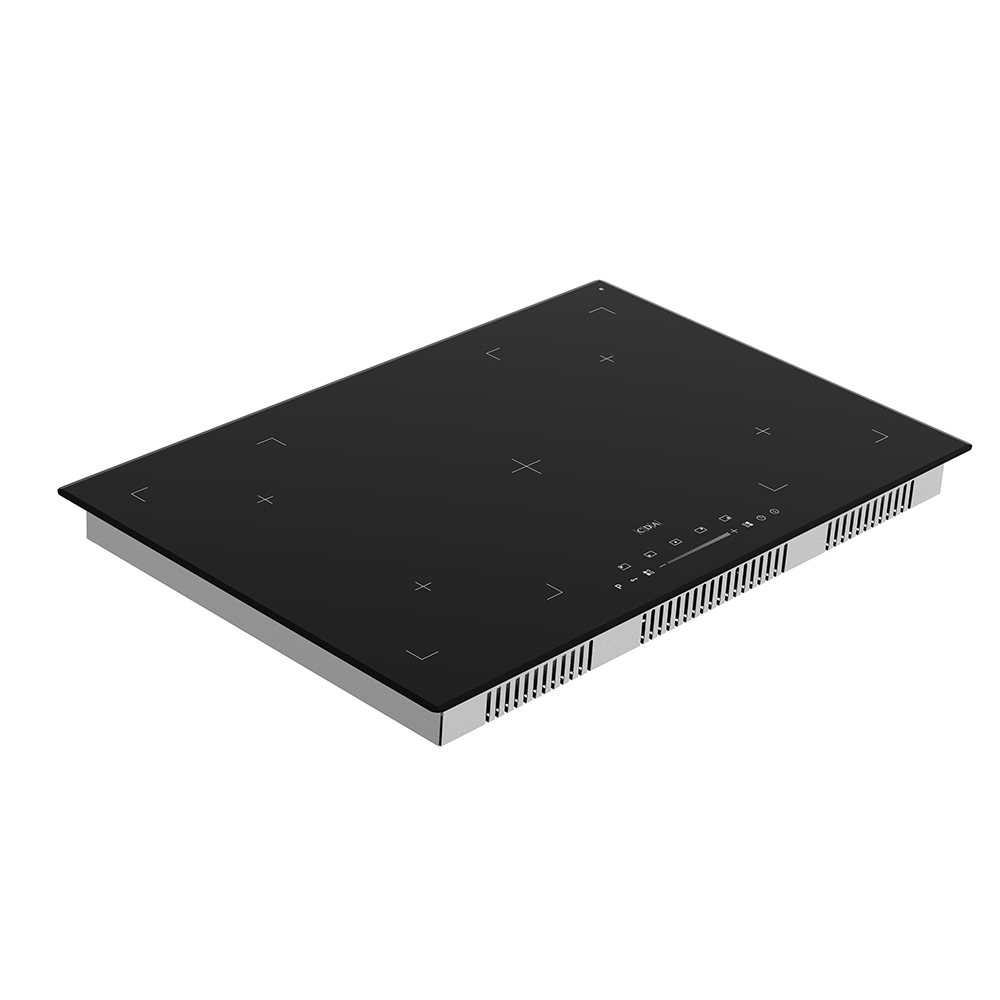

HN7750FR 77cm Five zone Induction hob

HN7750FR
HN7750FR HN7750FR HN7750FR HN7750FR

The HN7750FR has five zones, for which four can become bridging zones for extra flexibility. Featuring modern touch and slide controls, 9 power levels, Timer and a key lock.


Features
Technical
Downloads

Video


Features

  • Number of Zones: 5
  • 9 power levels
  • Zones can be bridged
  • Automatic pan detection
  • Timer: 0-99min
  • Booster function
  • Overflow detection
  • Overheat detection
  • Small object detection
  • Child lock
  • LED display
  • Electronic touch and slide control
  • Front control
  • Residual heat indicators

Available in

  • Frameless

Dimensions

  • Height: 62mm
  • Width: 770mm
  • Depth: 520mm
  • In-furniture depth: 56 mm
  • Cut out size WxD: 730x490mm
  • Packaged dimensions (gross) HxWxD: 150x830x590mm
  • Net weight: 12.2kg
  • Gross weight: 14kg

Technical Specification

  • Rated Power: 7.2kW kW

Zone Information

  • Left front: 180mm: 1.5/ 1.8kW
  • Left rear: 180mm: 1.2/ 1.5kW
  • Centre: 210mm: 1.8/ 2kW
  • Right front: 180mm: 1.2/ 1.5kW
  • Right rear: 180mm: 1.5/ 1.8kW

Misc Information

  • WEEE Category: 1
