HN6860FR 60cm HoodConnect induction hob

HN6860FR
HN6860FR HN6860FR HN6860FR HN6860FR

The HN6860FR is our new 60cm induction hob with Hood Connect feature. This allows your hob and hood to operate seamlessly between each other, allowing auto operation of the hood when using your hob. Other great features include 4 Precision programmes for ease of cooking: Melt, simmer, keep warm and Sear. The HN6860FR also packs in the following: Pause function, child lock, residual heat indicators, timer and bridging function. CDA Hood model CCH60BL required for Hood connect function. The HN6860FR fits in a 12mm worktop above a drawer pack & 28mm worktop above the CDA SL range of single ovens, offering great flexibility and easy installation.


Features
Technical
Downloads

Video


Features

  • Number of Zones: 4
  • HoodConnect
  • 14 power levels
  • Zones can be bridged
  • Automatic pan detection
  • Pause/restart function
  • Minute minder
  • Timer
  • Temperature limiter
  • Melt 40°
  • Simmer 70°
  • Cook 90°
  • Grill 200°
  • Booster function on all zones
  • Overflow detection
  • Overheat detection
  • Small object detection
  • Time limit security system
  • Safety key lock

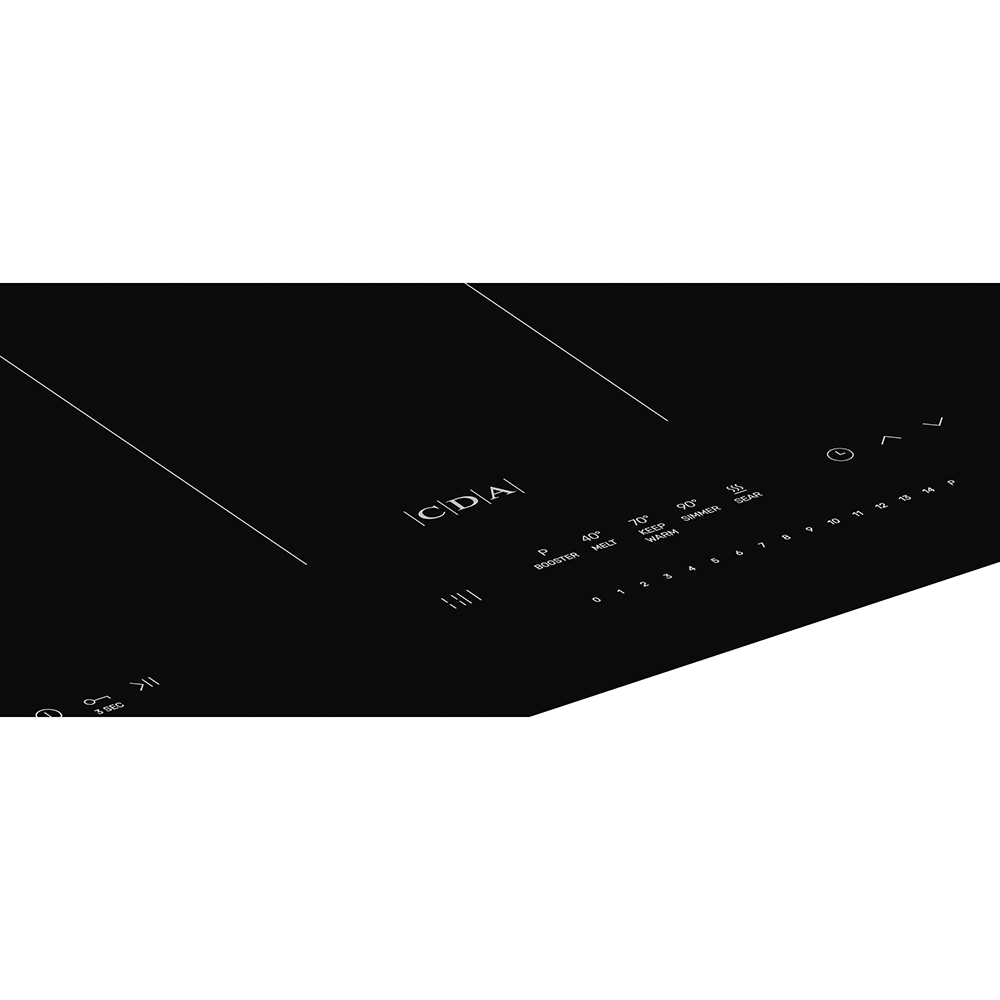

  • LED display
  • Front control
  • Slider control
  • Residual heat indicators

Dimensions

  • Height: 49mm
  • Width: 592mm
  • Depth: 522mm
  • In-furniture depth: 44 mm
  • Cut out size WxD: 560x490mm
  • Packaged dimensions (gross) HxWxD: 125x700x615mm
  • Net weight: 7.65kg
  • Gross weight: 8.95kg

Technical Specification

  • Rated electrical power: 7.3500 kW
  • Power cable length: 1.3m
  • Power cable type: 3x4mm²

Zone Information

  • Front left: 210mm: 2/ 3kW
  • Front right: 180mm: 1.6/ 2.5kW
  • Rear left: 160mm: 1.4/ 2.1kW
  • Rear right: 180mm: 1.6/ 2.5kW

Misc Information

  • WEEE Category: 1
