HN6013FR 60cm 4 zone Plug and Play induction hob

HN6013FR
HN6013FR HN6013FR HN6013FR HN6013FR

The HN6013FR is our new induction hob with a reduced depth to fit 12mm worktops above a drawer pack & 28mm worktops above the CDA SL range of single ovens. It has a new design and user interface, increased power levels, easy connection to a 13 Amp supply and comes with a plug! More features include a timer, pause function, child lock and residual heat indicator


Features
Technical
Downloads

Video


Features

  • Number of Zones: 4
  • 14 power levels
  • Automatic pan detection
  • Pause/restart function
  • Minute minder
  • Timer
  • Temperature limiter
  • Melt 40°
  • Simmer 70°
  • Cook 90°
  • Grill 200°
  • Booster function on all zones
  • Overflow detection
  • Overheat detection
  • Small object detection
  • Time limit security system
  • Safety key lock
  • Easy clean surface
  • LED display

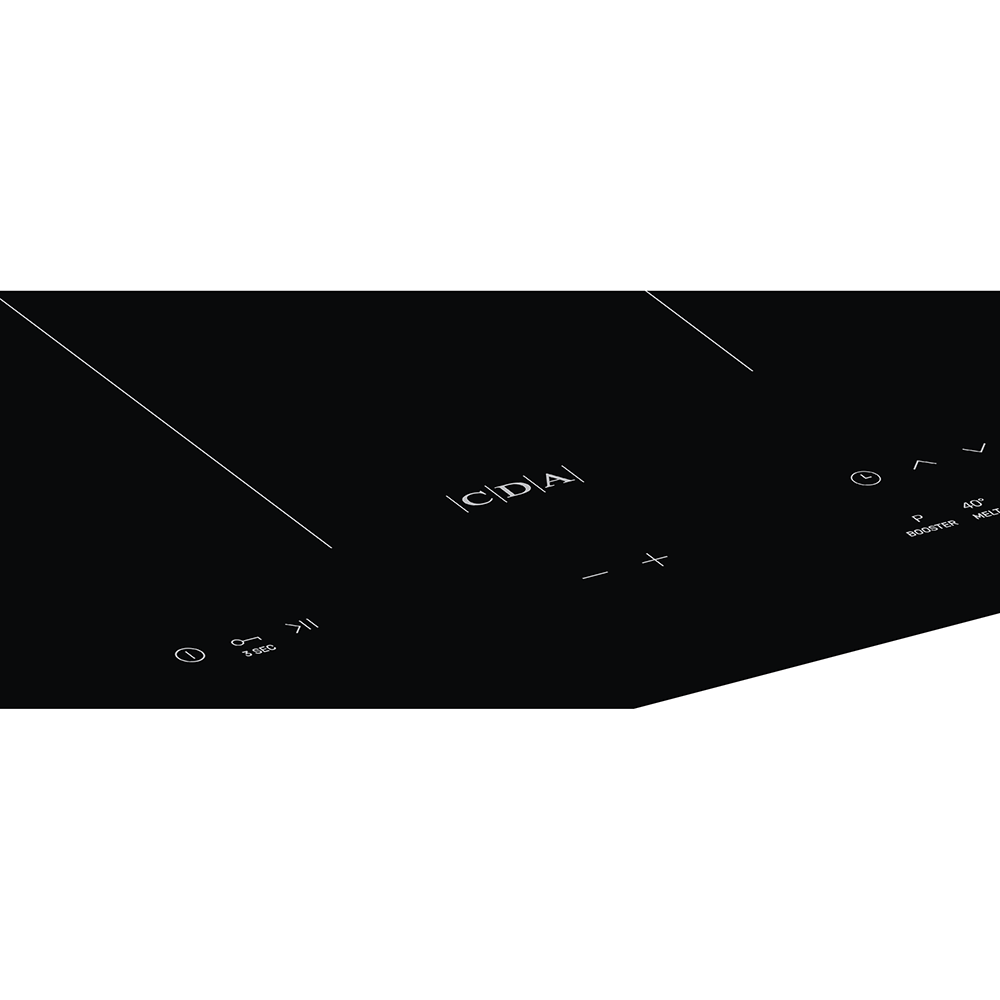

  • Electronic touch control
  • Front control
  • Residual heat indicators

Dimensions

  • Height: 49mm
  • Width: 592mm
  • Depth: 522mm
  • In-furniture depth: 44 mm
  • Cut out size WxD: 560x490mm
  • Packaged dimensions (gross) HxWxD: 125x615x700mm
  • Net weight: 7.65kg
  • Gross weight: 8.95kg

Technical Specification

  • Rated electrical power: 2.8000 kW
  • Power cable length: 1.3m
  • UK plug

Zone Information

  • Front left: 210mm: 2/ 2.8kW
  • Front right: 160mm: 1.4/ 2.1kW
  • Rear left: 160mm: 1.4/ 2.1kW
  • Rear right: 210mm: 2/ 2.8kW

Misc Information

  • WEEE Category: 1
