CTE62SS Telescopic extractor

CTE62SS
CTE62SS CTE62SS CTE62SS CTE62SS CTE62SS CTE62SS

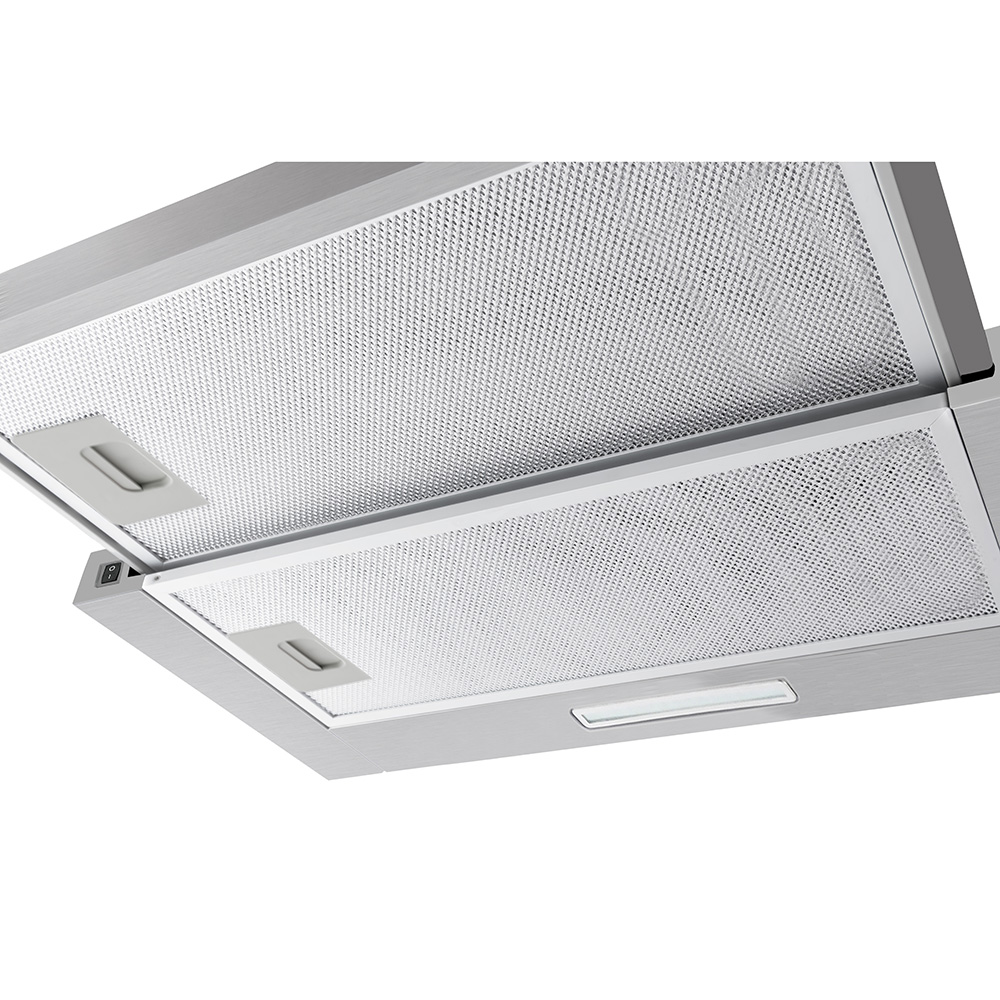

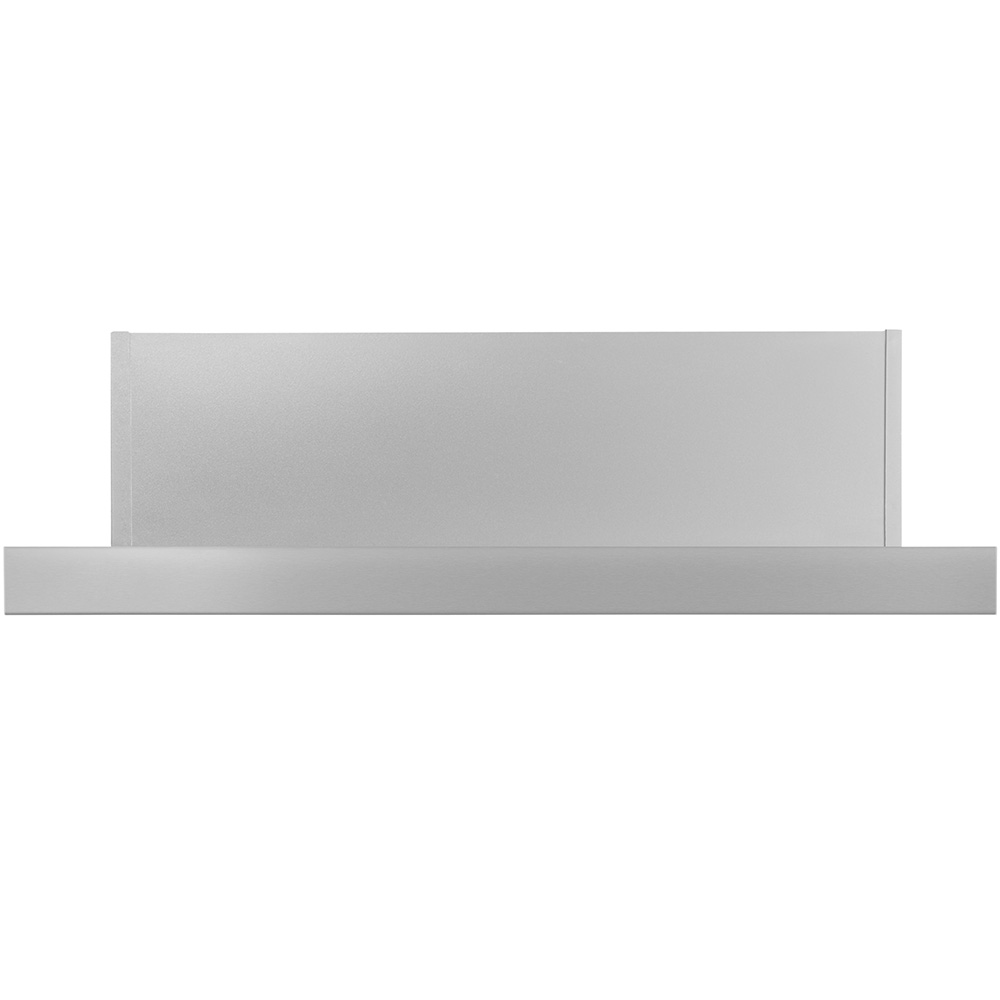

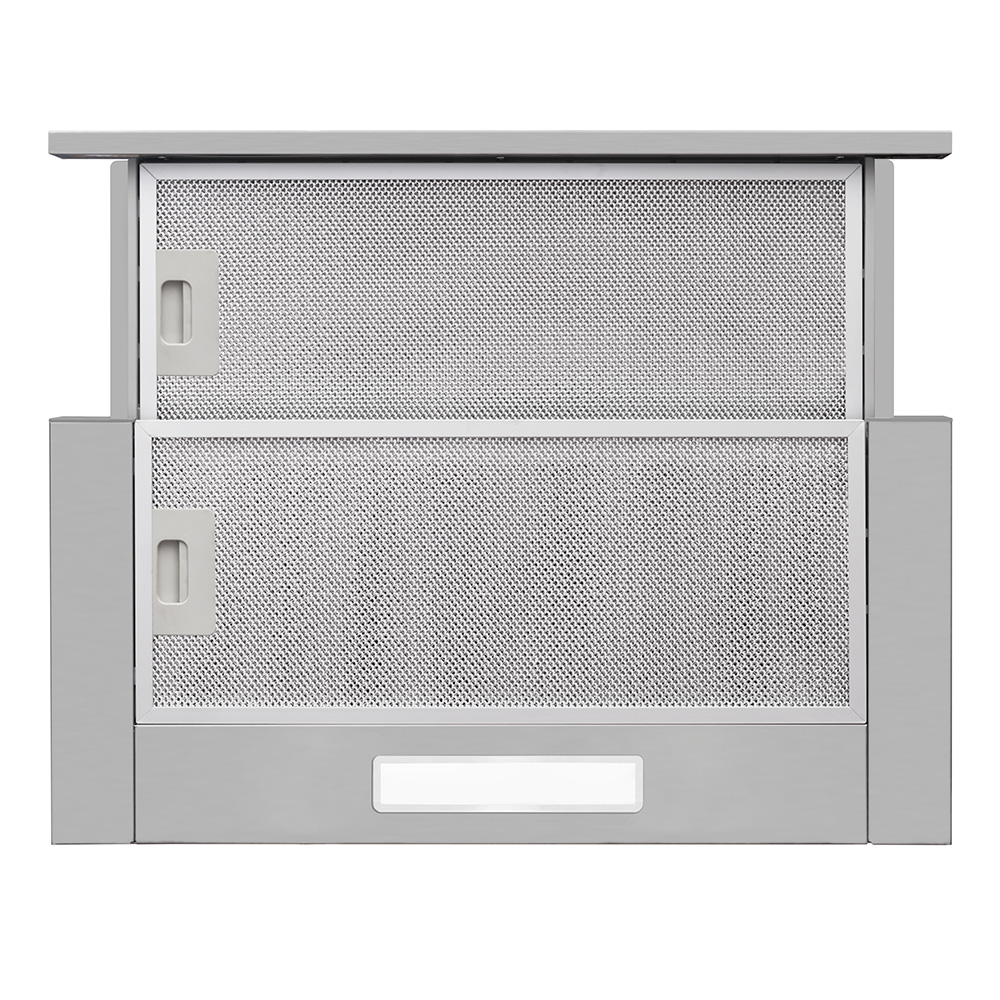

The CTE62SS 60cm extractor is a space-saving telescopic hood, designed to fit under your cupboard and slide away to save space when not in use. It features 3 speeds, rocker switch controls and LED lights to provide great illumination of the cooking area.


Features
Technical
Downloads

Features

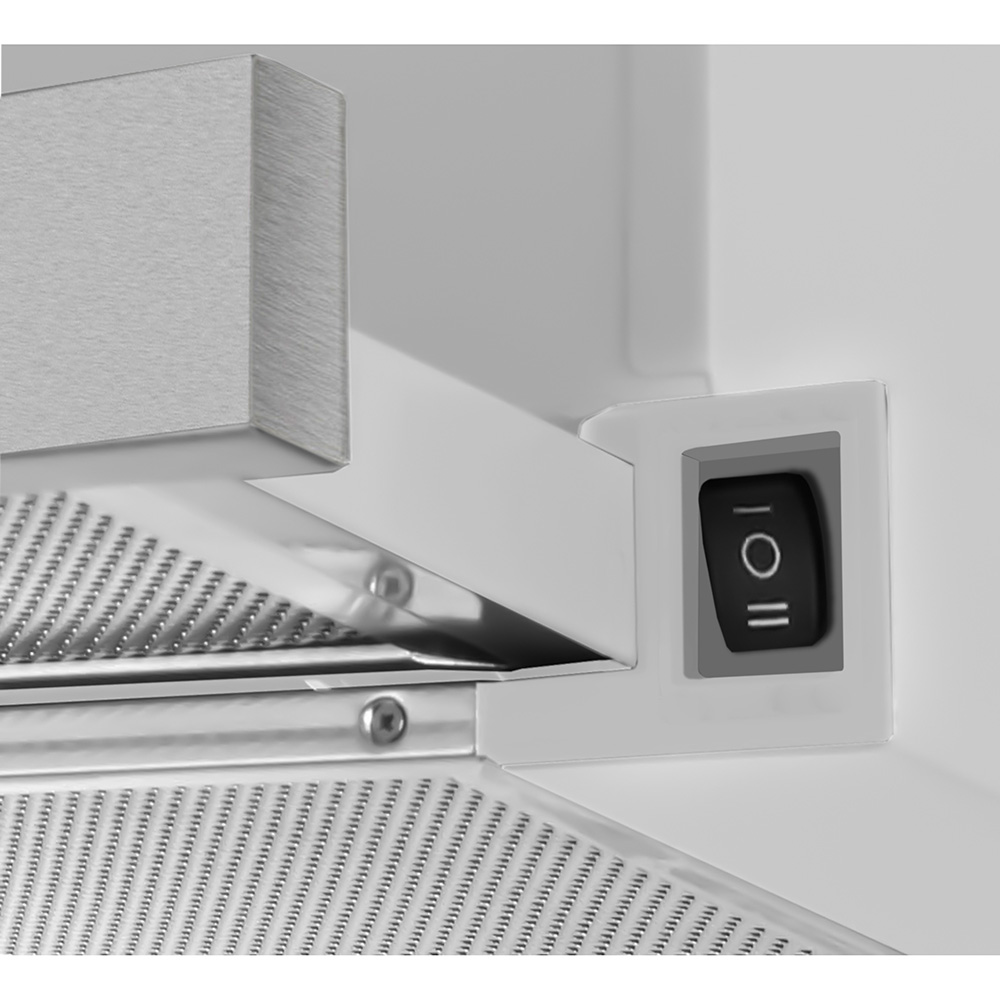

  • Rocker switch
  • Number of speeds: 3
  • Ducted/re-circulating installation

Available in

  • Stainless steel

Dimensions

  • Height: 176mm
  • Width: 598mm
  • Depth: 300mm
  • Net Weight: 5.7kg
  • Gross weight: 6.5kg

Optional Accessories

  • Charcoal filter code: CHA45, pack of 2

Technical Specification

  • Outlet diameter: 120mm mm
  • Rated Electrical Power: 74W W
  • Motor input: 70 W
  • Mains lead length: 1.2m
  • Protection class: Class II
  • Pressure value: 137 Pa
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)

Extraction Rates And Noise

  • Extraction rate speed 1: 151 m3/hr
  • Extraction rate speed 2: 196 m3/hr
  • Extraction rate speed 3: 255 m3/hr
  • Noise level speed 1: 55 dBA
  • Noise level speed 2: 60 dBA
  • Noise level speed 3: 63 dBA

Energy

  • Energy rating: C
  • Energy consumption per annum: 37.7kWh kWh*

Lighting

  • Type of light: LED Strip
  • Number of lights: 1
  • Colour temperature: 6500 K
  • Wattage of lights: 4W
  • Lighting energy rating: A

Filters

  • Grease filtering efficiency class: F
  • Type of grease filter: Aluminium frame
  • Number of layers: 5
  • Number of grease filters: 2
  • Dishwashable grease filter
  • Number of charcoal filters (optional): 2

Misc Information

  • WEEE Category: 1
