EKP60SS Curved glass extractor with edge lighting

EKP60SS
EKP60SS EKP60SS EKP60SS

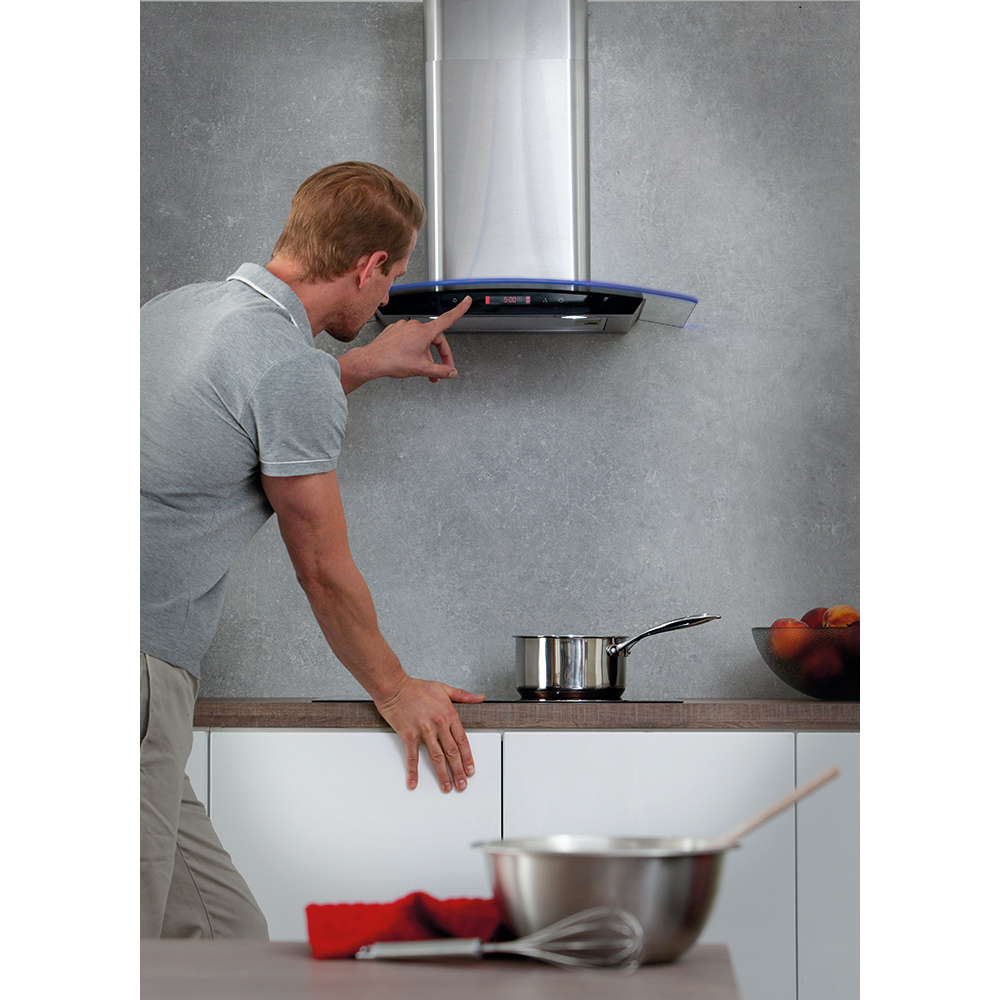

The EKP60SS has a striking curved glass stainless steel design which is both chic and practical. The EKP60SS also has LED edge lighting in three colours blue, red and green creating an ambiance. The extractor has 3 speeds with touch control and aluminium grease filters.


Features
Technical
Downloads

Video


Features

  • Number of Speeds: 3
  • Clock
  • Glass control panel
  • Touch control
  • Timer: 1-9 minutes
  • Height adjustable
  • Ducted/re-circulating installation

Available in

  • Stainless steel
  • Black

Lighting

  • Type of light: LED
  • Wattage of lights: 2W
  • Number of lights: 2
  • Colour temperature: 4000K
  • Lighting energy rating: A
  • Additional lighting: 1x 3W decorative, adjustable colour

Dimensions

  • Height: 410-780mm
  • Width: 600mm
  • Depth: 500mm

Optional Accessories

  • Charcoal Filters: CHA17

Technical Specification

  • Outlet Diameter: 120 mm
  • Required height over electric hobs: 550 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Protection class: Class I
  • Pressure value: 184 Pa
  • Rated electrical power: 127 W
  • Motor input: 120W W
  • Fuse: 3 A
  • Mains lead length: 1m m

Extraction Rates And Noise

  • Extraction rate speed 1: 222 m3/hr
  • Extraction rate speed 1: 222 m3/hr
  • Extraction rate speed 2: 289 m3/hr
  • Extraction rate speed 2: 289 m3/hr
  • Extraction rate speed 3: 336 m3/hr
  • Extraction rate speed 3: 336 m3/hr
  • Noise level speed 1: 63 dBA
  • Noise level speed 1: 63 dBA
  • Noise level speed 2: 66 dBA
  • Noise level speed 2: 66 dBA
  • Noise level speed 3: 69 dBA
  • Noise level speed 3: 69 dBA

Energy

  • Energy rating: D
  • Annual energy consumption: 63 kWh

Filters

  • Grease filtering efficiency class: D
  • Grease filtering efficiency class: D
  • Type of grease filter: Cassette aluminium
  • Number of layers: 4
  • Number of layers: 4
  • Number of grease filters: 1
  • Dishwashable grease filter
  • Dishwashable grease filter
  • Number of charcoal filters (optional): 2

Misc Information

  • WEEE Category: 01
