ECH73SS Chimney extractor

ECH73SS
ECH73SS ECH73SS ECH73SS ECH73SS

The ECH73SS 70cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen. The ECH73SS has 3 speeds with push button control and built in LED lights for great illumination.


Features
Technical
Downloads

Features

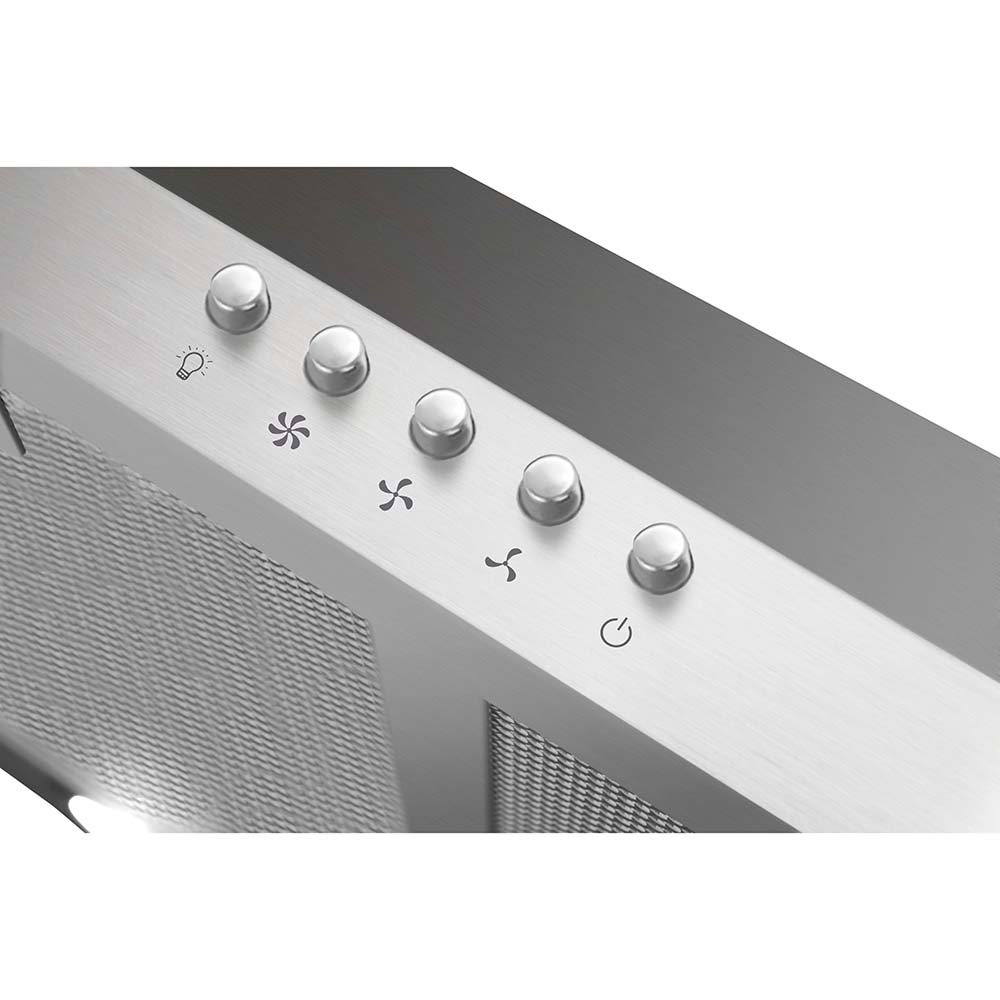

  • Push Button
  • Speeds: 3
  • Height adjustable
  • Ducted/re-circulating installation

Available in

  • Stainless steel
  • Black

Lighting

  • Type of light: LED GU10
  • Wattage of lights: 4W
  • Number of lights: 2
  • Colour temperature: 3000K
  • Lighting energy rating: A

Dimensions

  • Height: 644-1024mm
  • Width: 700mm
  • Depth: 500mm
  • Net weight: 8.4kg
  • Gross weight: 9.92kg

Optional Accessories

  • Charcoal filter code: FWP 18, pack of 2
  • Ducting kit code: AED610, AED660

Technical Specification

  • Outlet Diameter: 150 mm
  • Outlet position: Top
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Protection class: Class I
  • Pressure value: 308 Pa
  • Rated electrical power: 158 W
  • Motor input: 150W W
  • Fuse: 3 A
  • Mains lead length: 1.2m m

Extraction Rates And Noise

  • Extraction rate speed 1: 289 m3/hr
  • Extraction rate speed 2: 360 m3/hr
  • Extraction rate speed 3: 498 m3/hr
  • Noise level speed 1: 53 dBA
  • Noise level speed 2: 60 dBA
  • Noise level speed 3: 64 dBA

Energy

  • Energy rating: C
  • Energy consumption per annum: 63 kWh

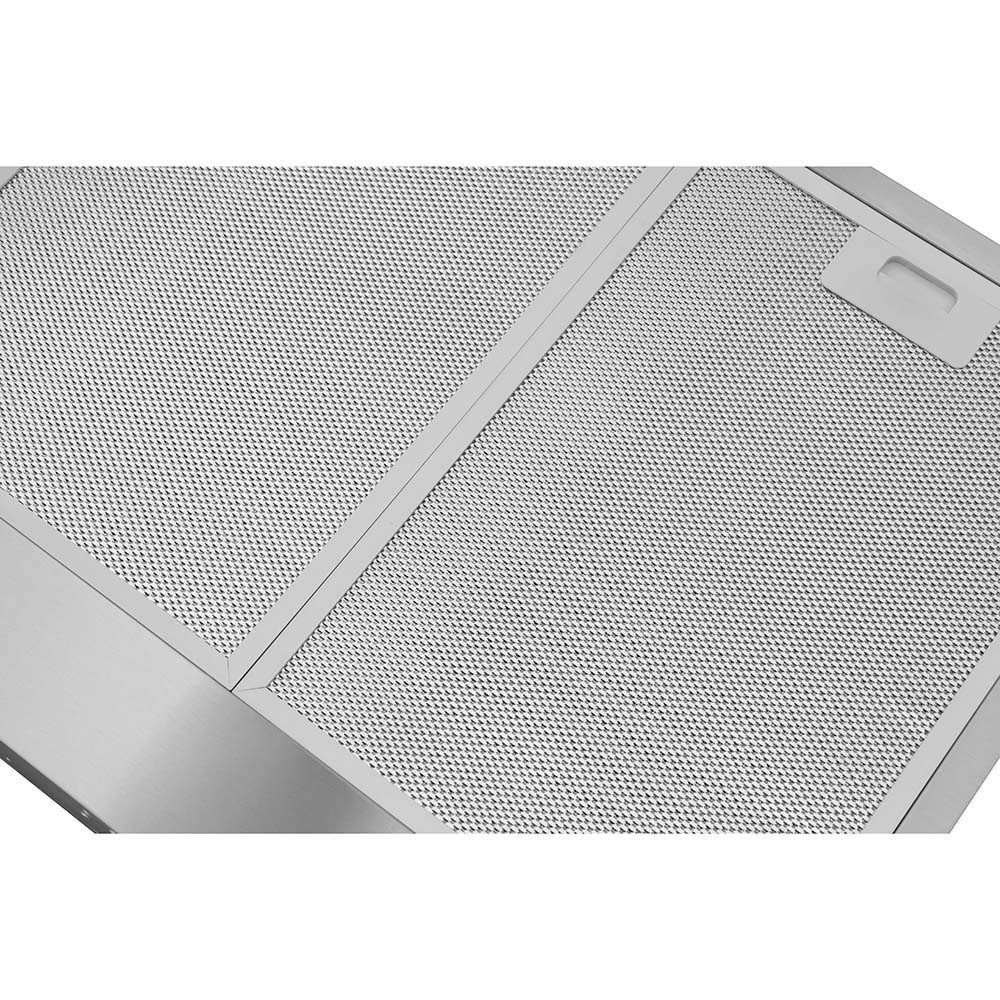

Filters

  • Grease filtering efficiency class: C
  • Type of grease filter: Aluminium frame
  • Number of layers: 5
  • Number of grease filters: 2
  • Dishwashable grease filter
  • Number of charcoal filters (optional): 2

Misc Information

  • WEEE Category: 1
