ECH63SS Chimney extractor

ECH63SS
ECH63SS ECH63SS ECH63SS ECH63SS ECH63SS

The ECH63SS 60cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen. The ECH63SS has 3 speeds with a push button control and built in LED lights for good illumination.


Features
Technical
Downloads

Features

  • 3 speeds

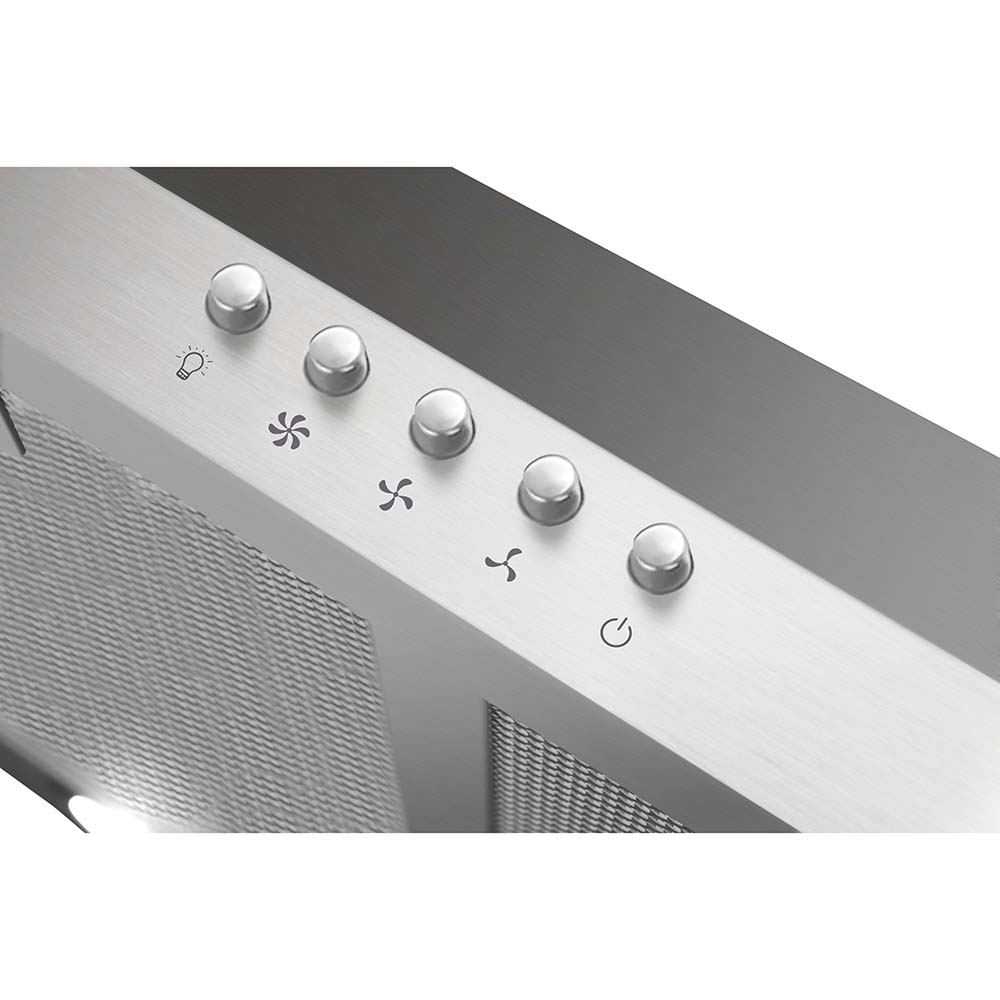

  • Push Button
  • Height adjustable
  • Ducted/re-circulating installation

Available in

  • Stainless steel
  • Black

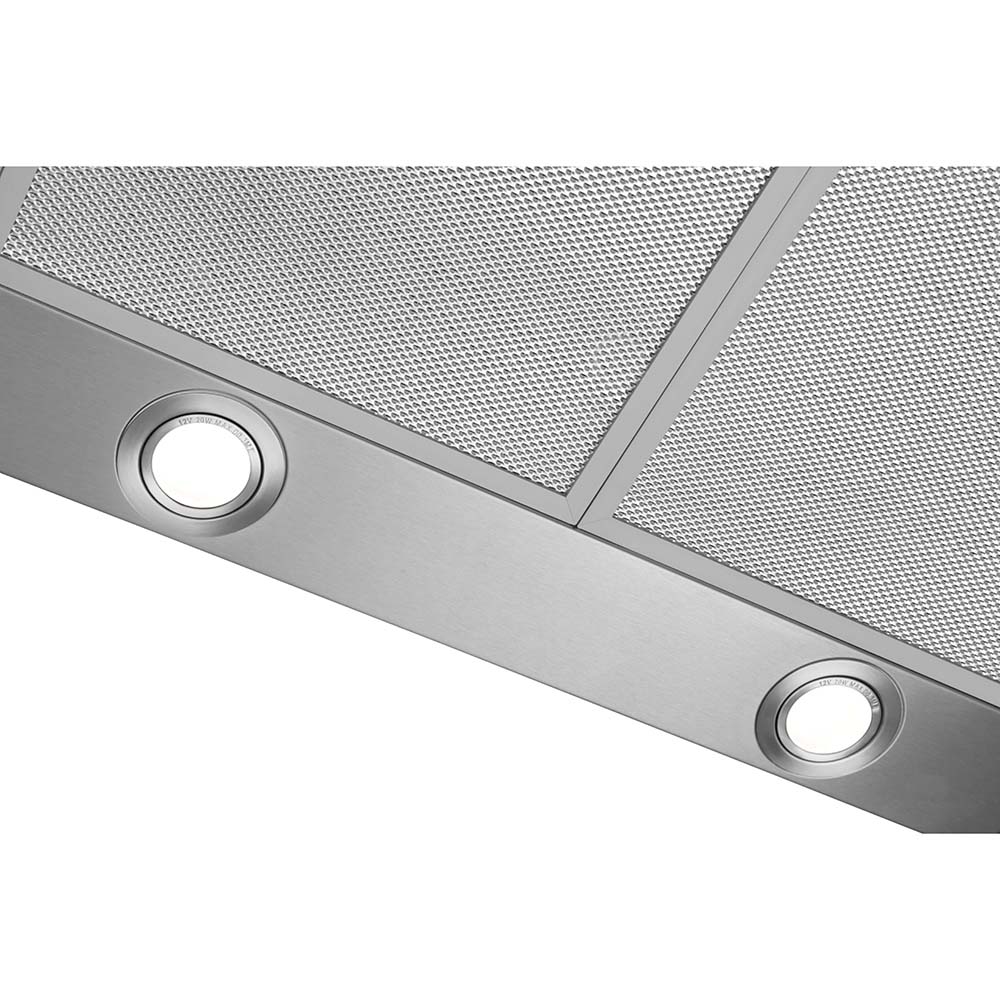

Lighting

  • Lighting: 2 x LED GU10
  • Wattage of lights: 4W

Dimensions

  • Height: 644-1024mm
  • Width: 600mm
  • Depth: 500mm
  • Net weight: 8.1kg
  • Gross weight: 9.6kg

Optional Accessories

  • Charcoal filter code: CHA37

Technical Specification

  • Outlet diameter: 150mm mm
  • Outlet position: Top
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Rated Electrical Power: 158W W
  • Motor input: 150W W
  • Mains Lead Length: 120.0000 mm

Extraction Rates And Noise

  • Extraction rate at first speed: 280m³/hr m³/hr
  • Extraction rate at second speed: 360m³/hr m³/hr
  • Extraction rate at third speed: 475m³/hr m³/hr
  • Noise level at first speed: 53dBA dBA
  • Noise level at second speed: 60dBA dBA
  • Noise level at third speed: 64dBA dBA

Energy

  • Energy rating: C
  • Energy consumption per annum: 71 kWh

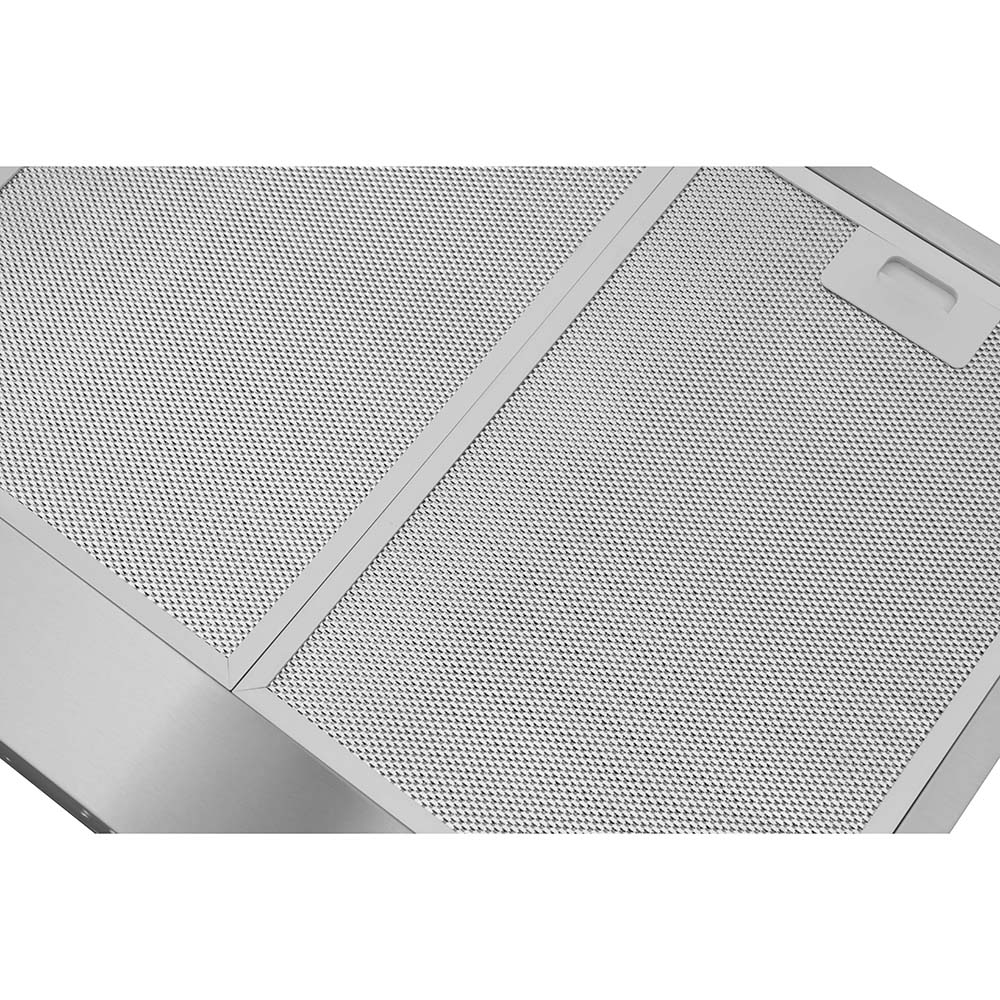

Filters

  • Aluminium grease filter
  • Number of layers: 5
  • Number of grease filters: 2
  • Dishwashable grease filter
  • Number of Charcoal Filters: 2

Misc Information

  • WEEE Category: 1
