EVS90BL Ceiling extractor

This product has now been discontinued
EVS90BL
EVS90BL EVS90BL EVS90BL

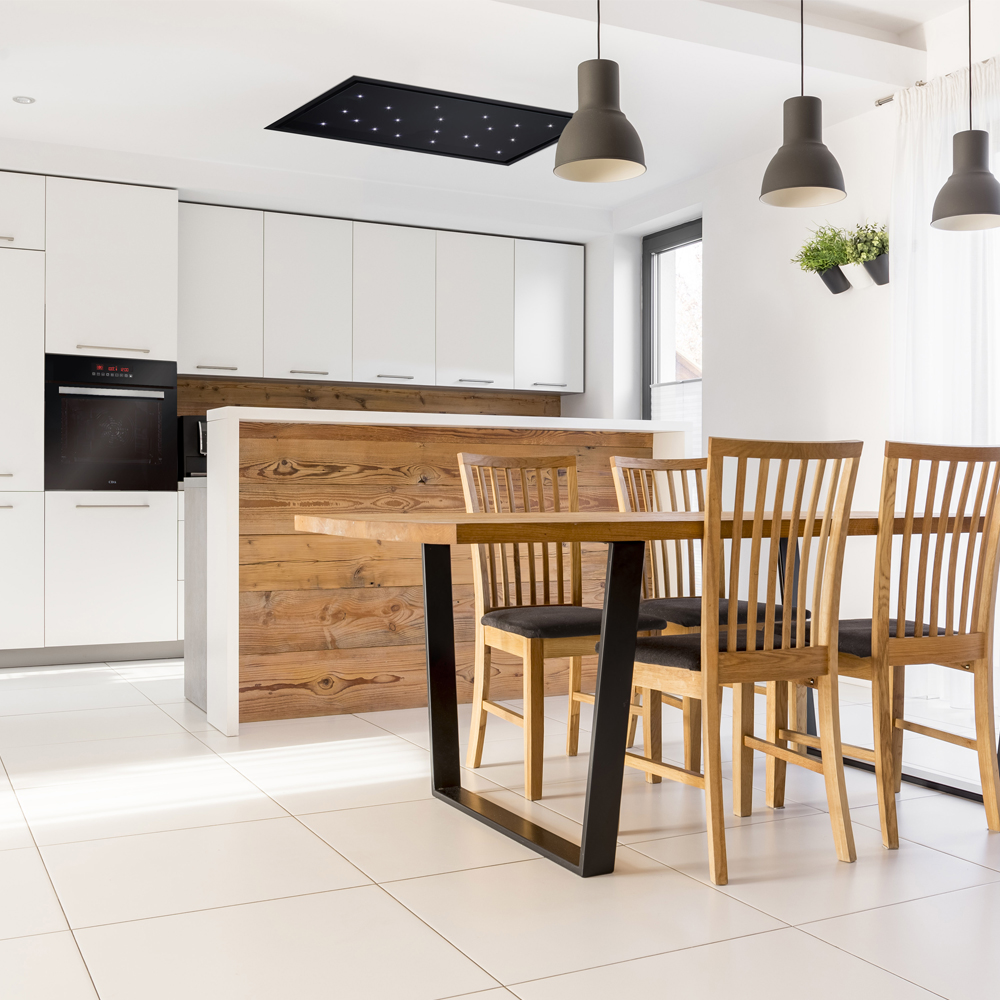

The EVS90BL is a beautifully designed 90cm ceiling extractor with star effect. This extractor comes with an external motor which can not only reduce noise level but by being installed in the ceiling this eye catching extractor will allow you flexibility to make the most out of your kitchen space. Along with its ultra-modern design it also boasts a timer function, 2 speeds + 2 intensive and 20 micro LED lights which are all controlled by remote.


Features
Technical
Downloads

Features

  • Speeds: 4
  • Ducted/re-circulating installation
  • Remote control
  • Timer: 15 minutes
  • Boost function
  • Peripheral aspiration
  • External motor

Available in

  • Black

Dimensions

  • Height: 115 mm
  • Width: 930 mm
  • Depth: 530 mm
  • Packaged dimensions (gross) HxWxD: 200x1150x750mm
  • Net weight: 18.7000 kg
  • Gross weight: 23.4000 kg

Filters

  • Number of charcoal filters (optional): 1
  • Type of grease filter: Amuminium frame
  • Number of grease filters: 3
  • Number of layers: 5
  • Grease filtering class: G
  • Dishwashable grease filter

Optional Accessories

  • Ducting kit code: 150mm: AED610/660

Technical Specification

  • Outlet diameter: 150mm
  • Required height over electric hobs: 450 mm (min)
  • Required height over gas hobs: 650 mm (min)
  • Rated electrical power: 358 W
  • Protection class: Class I
  • Motor input: 355.0000 W
  • Mains lead length: 2m m
  • Pressure value: 352 Pa

Extraction Rates And Noise

  • Extraction rate speed 1: 438 m3/hr
  • Extraction rate speed 2: 599 m3/hr
  • Extraction rate speed 3: 706 m3/hr
  • Extraction rate speed 4: 719 m3/hr
  • Noise level speed 1: 54 dBA
  • Noise level speed 2: 58 dBA
  • Noise level speed 3: 61 dBA
  • Noise level speed 4: 62 dBA

Energy

  • Energy rating: C
  • Energy consumption per annum: 98.0000 kWh

Lighting

  • Type of light: Micro LED
  • Number of lights: 20
  • Wattage of light: .1500 W
  • Colour temperature: 10000K

Misc Information

  • WEEE Category: 01
